Hawen QT15 Granite Face Paver Production Line

The Hawen QT15 granite face paver production line is engineered for high-efficiency manufacturing of architectural concrete products with a natural stone-like surface texture. With a pallet size of 1400×1100mm, the system is widely deployed in municipal infrastructure, landscape engineering, and high-end paving applications where both mechanical strength and aesthetic integrity are required.

1. Material System: Dual-Layer Configuration Governs Surface Performance

The QT15 system is built upon a dual-layer concrete architecture, consisting of a structural base mix and a decorative face mix.

The base layer is responsible for structural integrity and load-bearing capacity. It typically consists of crushed aggregates, sand, and cement in engineered proportions to ensure mechanical stability under long-term эксплуатаtion.

The face layer, however, defines all visible surface characteristics and is applied during the compaction cycle of the block machine / brick machine system.

Typical face mix components include:

Quartz sand for abrasion resistance and surface hardness
Granite-derived particles for natural stone texture formation
Mineral pigments for long-term color stability and UV resistance

All raw materials are processed through a fully automated batching system, ensuring strict ratio control across every cycle of the block making machine production process.

Since the face layer governs all surface performance parameters, even minimal deviations in proportioning accuracy may result in variations in pigment dispersion, surface densification behavior, and the authenticity of the granite-effect finish in brick making machine products.

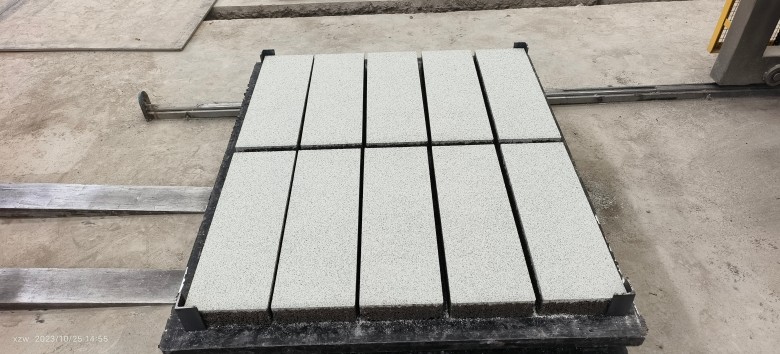

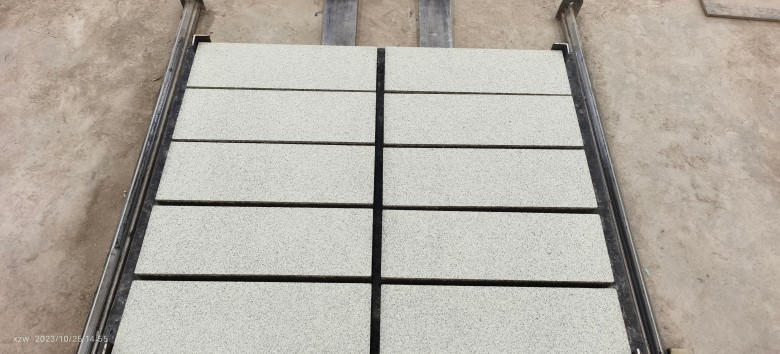

2. Surface Engineering: Tamper Head Interaction and Texture Formation

Surface quality is not solely determined by material composition, but also by the interaction between compaction tooling and vibration dynamics within the block machine system.

A standard smooth tamper head typically produces a uniform, flat surface suitable for conventional paving products.

For granite-face applications, the tamper head surface may be engineered with a controlled micro-roughened structure. This modification introduces subtle surface heterogeneity during compaction, enhancing the realism of natural stone replication in brick machine output.

The result is a more refined surface morphology, with improved visual depth and texture continuity under natural lighting conditions.

3. Production Line Architecture (1400×1100mm System Integration)

The Hawen QT15 production line integrates a fully automated workflow from raw material handling to finished product stacking.

Core process configuration includes:

PL1600-III batching system for high-precision dosing
Planetary mixing unit ensuring homogeneous concrete consistency
QT15 hydraulic forming block machine system for controlled compaction
Elevator and lowerator system for pallet circulation
Finger cart transfer system for curing chamber logistics
Automated cuber for final stacking and palletizing

The entire system operates under synchronized coordination between batching accuracy, vibration consistency, and hydraulic forming stability.

4. Hydraulic, Vibration, and Control Architecture

The hydraulic system is designed to deliver stable and repeatable forming pressure throughout continuous production cycles. It adopts high-response directional control technology to maintain pressure uniformity under variable load conditions.

The vibration system features a six-shaft configuration with externally positioned eccentric blocks. This layout minimizes internal resistance, enhances energy transmission efficiency, and improves compaction uniformity across the product surface.

The control system integrates PLC-based automation with real-time operational monitoring, enabling precise parameter adjustment within the block machine / brick machine production environment.

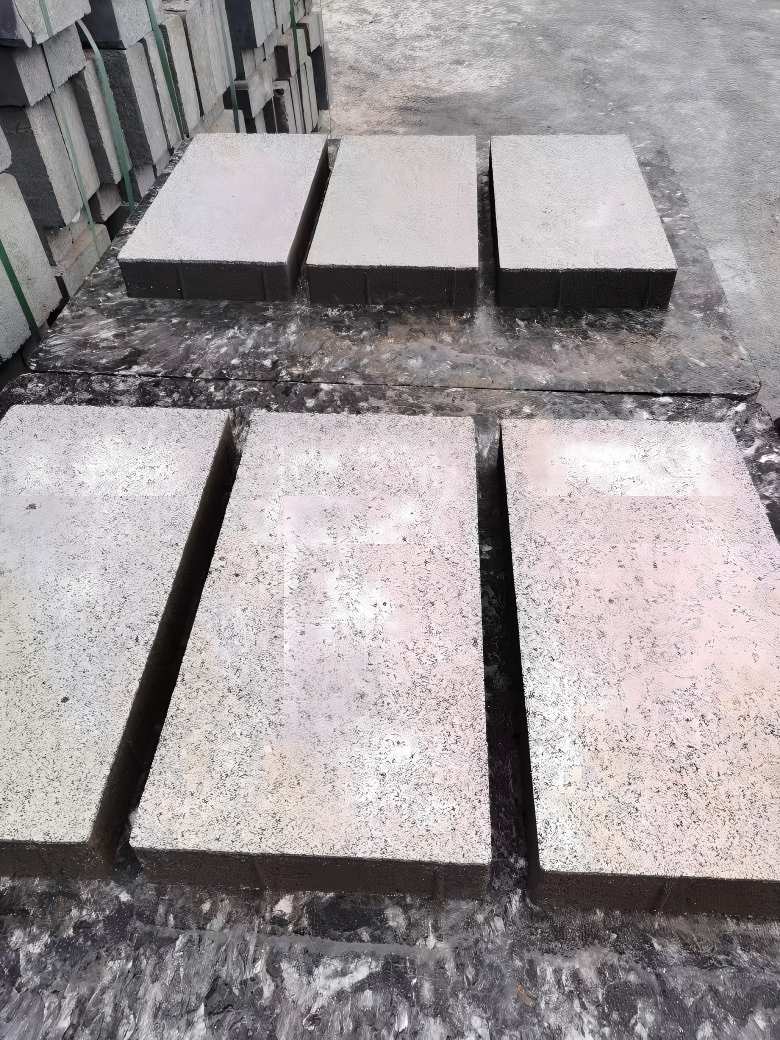

5. Application Scope: Granite-Face Paving Solutions

Granite-face products manufactured via the QT15 system are widely utilized in:

Urban pedestrian infrastructure
Landscape and ecological design projects
Residential and commercial paving systems
Municipal road and walkway construction

Their value extends beyond compressive strength, emphasizing long-term surface stability, weather resistance, and architectural consistency.

Conclusion

The Hawen QT15 granite face paver production line represents a structured engineering approach to advanced concrete surface manufacturing.

By separating base and face mix systems, optimizing compaction dynamics, and refining surface formation through engineered tamper head design, the system transforms conventional concrete into high-value architectural paving materials.

Within this framework, Hawen Machinery delivers not merely a block machine or brick machine system, but a fully integrated production solution for precision surface engineering and industrial-scale consistency.
