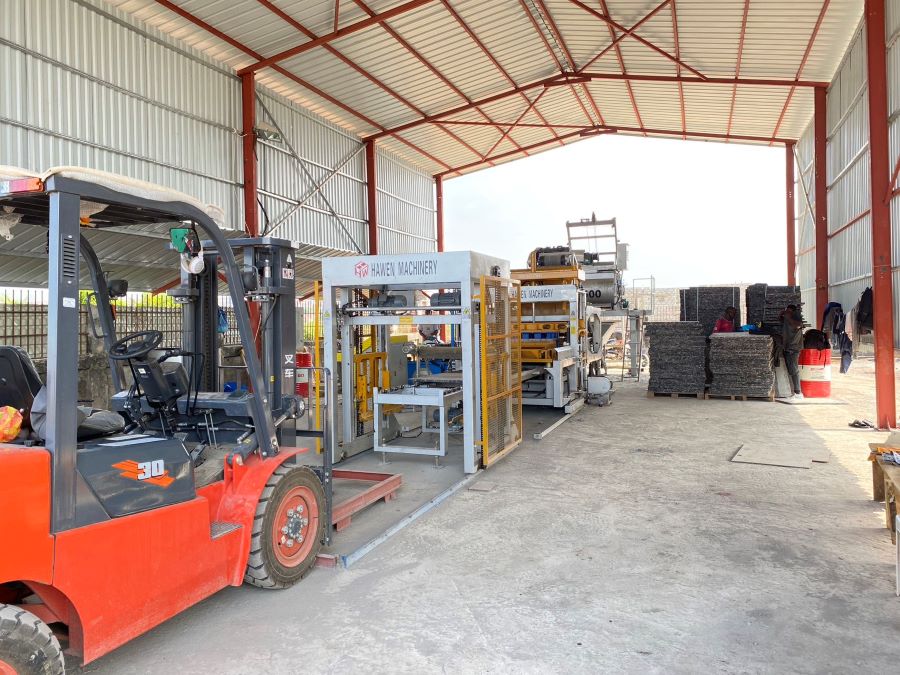

QT4-15 Automatic paver block production line in Guinea West Africa

Author:HAWEN Block MachineFROM:Brick Production Machine Manufacturer TIME:2025-07-09

QT4-15 Automatic paver block production line in Guinea West Africa.HAWEN OT4-15 block making machine is a multifunctional block making machine,allows to makethe hollow block,interlocking paving stone,curb stone by changing the mould only,suitable forcustomer who starts the concrete products business.


Pallet size of machine:980x560mm


Capacity for QT4-15:

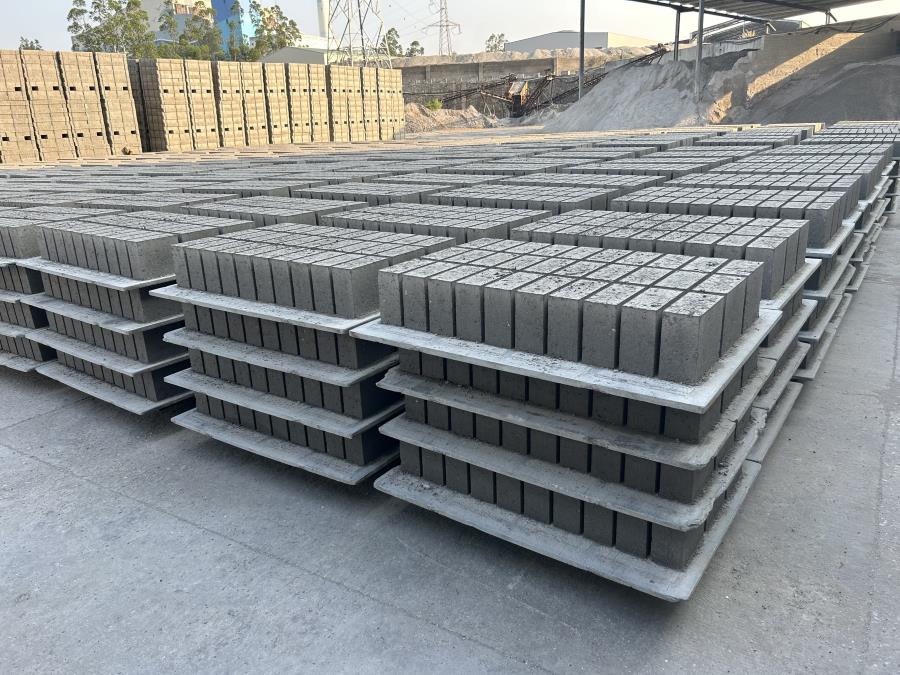

-Hollow block 400x200x200mm:

4pcs/mould,approx.5700pcs/8hours;


-Hollow block 400x150x200mm:

5pcs/mould,approx.7500pcs/8hours.


-Hollow block 400x100x200mm:

8pcs/mould,approx.11500pcs/8hours.


-Rectangular paver 200x100x60mm:

16pcs/mould.23000pcs/8hours,

approx.460 square meters per shift

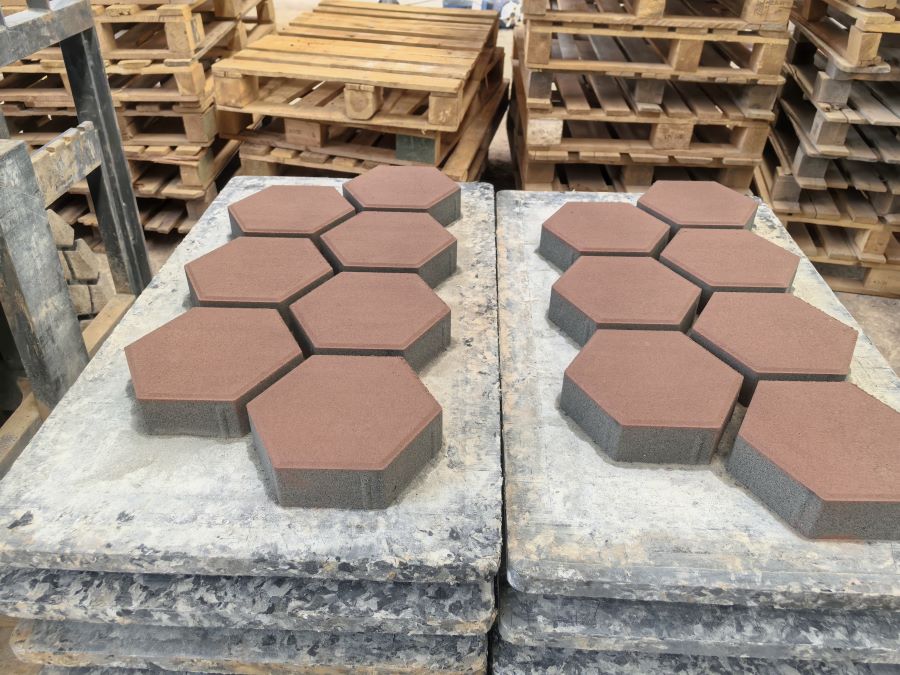

-Hexagonal paver 228x198x60mm

7pcs/mould,11.000pcs/8hours.


-DoubleTpaver 197x162x60mm
12pcs/mould.17500pcs/8hours,

At 500 square meter per shift


The control system of brick making machine is equipped with SIEMENS PLC or VigorPLC,production program, malfunction diagnosis system and remote control function,easy foloperation and maintenance.
The Hydraulic system With"YUKEN" brand double proportional valve and directional valves, theflow and pressure of each movement could be adiusted on touch panel.machine runningsmoothly without impact,through the double vane pump,different actions runsimultaneously,greatlyimprove production efficiency.
Main forming machine equipped with a basic Face-mix device,it can make the double layer pavingstone just by changing the mould.
