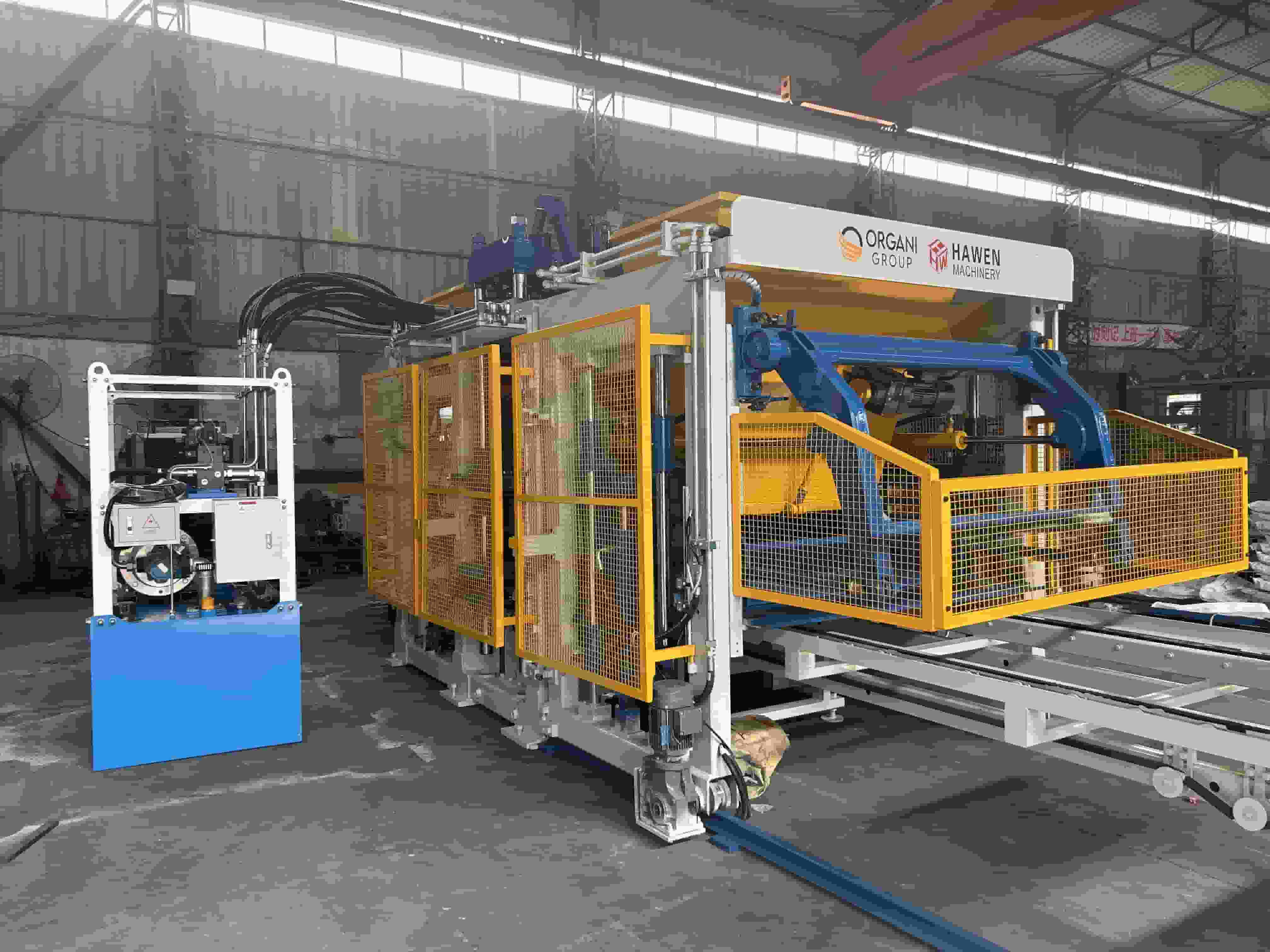

Hawen QT12 Automatic Brick making machine plant

HAWEN QT12-15 Automatic block making machine is one of the most popular Automatic block making machine for big scale production in the market. It is a multifunctional block making machine,allows to make the hollow block,stock brick and maxie brick,interlocking paving stone,curb stone by changing the mould only.

Pallet size of machine: 1350x950mm or 1400x880mm or 1380x900mm

Capacity for QT12-15:

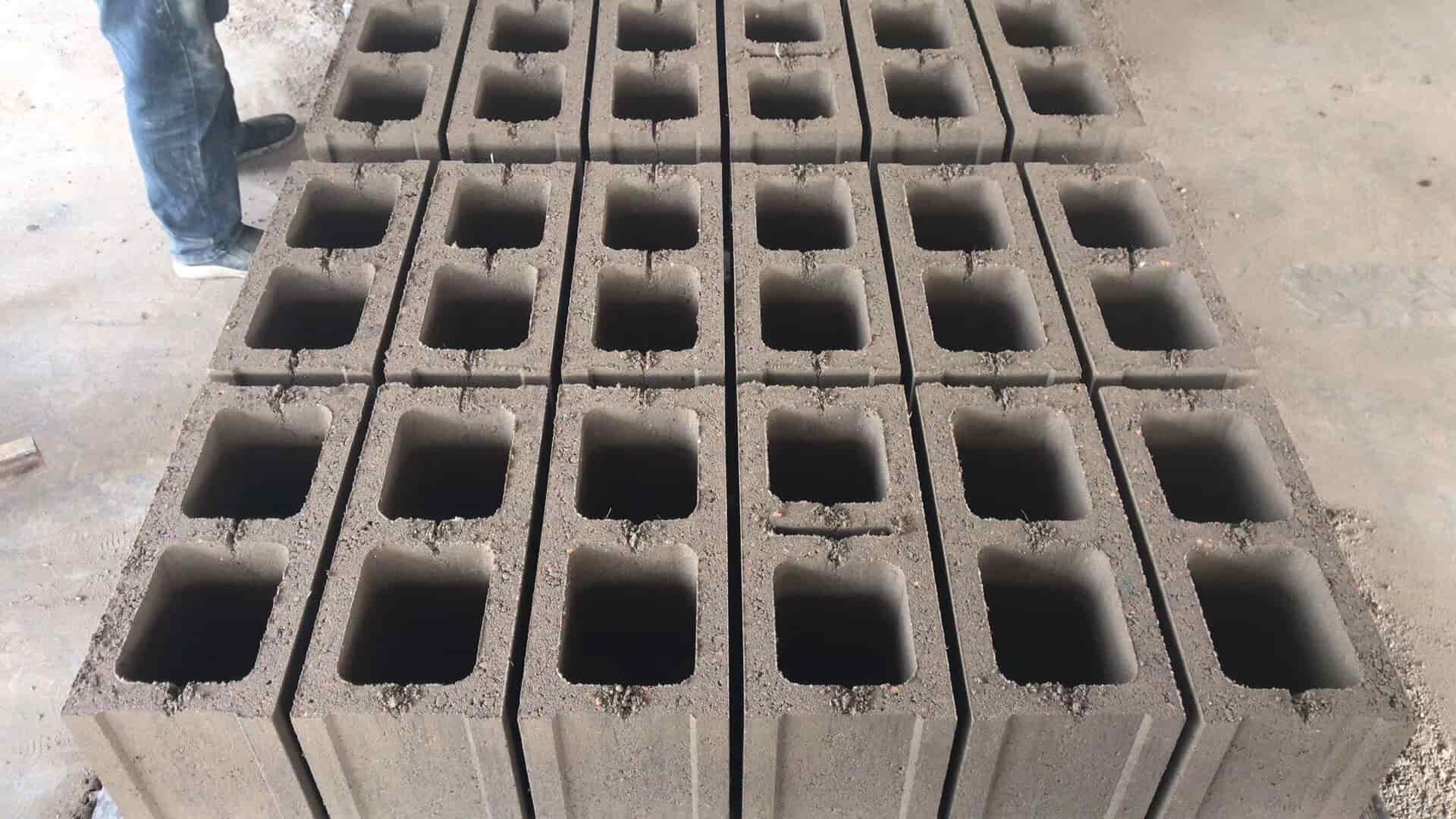

- Hollow block 390x140x190mm:

16pcs/mould , approx.23,000~23,500pcs/8hours;

- Hollow block 390x190x190mm:

12pcs/mould,approx.17000~18000pcs/8hours.

- Stock brick 200x100x70mm

60pcs/mould,115,000~120,000pcs/8hours per shift

- Maxie brick 290x90x140mm

32pcs/mould,60,000~62,000pcs/8hours per shift

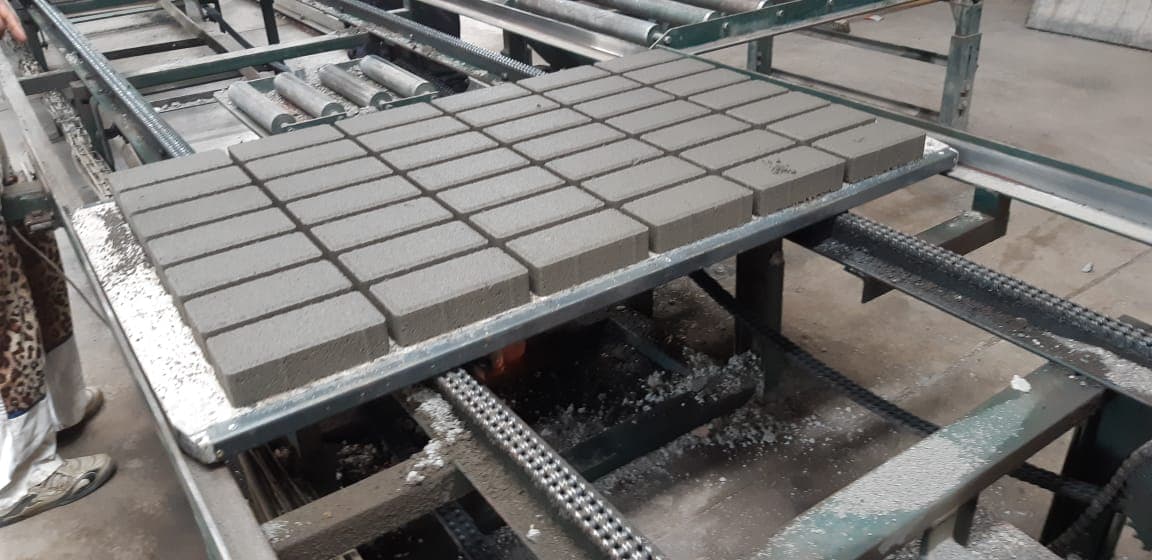

- Rectangular paver 200x100x60mm:

44pcs/mould,63400pcs/8hours,approx.1260 square meters per shift;(for pallet size at 1350x950mm)

- Rectangular paver 200x100x60mm:

42pcs/mould,60000pcs/8hours,approx.1200 square meters per shift;(for pallet size at 1400x880mm)

- Interlocking paver 200x100x60mm:

 42pcs/mould,60000pcs/8hours,approx.1200 square meters per shift;

The control system of brick making machine is equipped with SIEMENS PLC and SIEMENS Touch Panel,world-famous brand with quality assured.With malfunction diagnosis system and remote control function,easy for operation and maintenance.

The Hydraulic system With“YUKEN” brand double proportional valve and directional valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.

Main forming machine equipped with a basic Face-mix device,it can make the double layer paving stone just by changing the mould.
