How to do maintenance for vibration box of Block making machine ?

How to do maintenance for vibration box of Block making machine ?

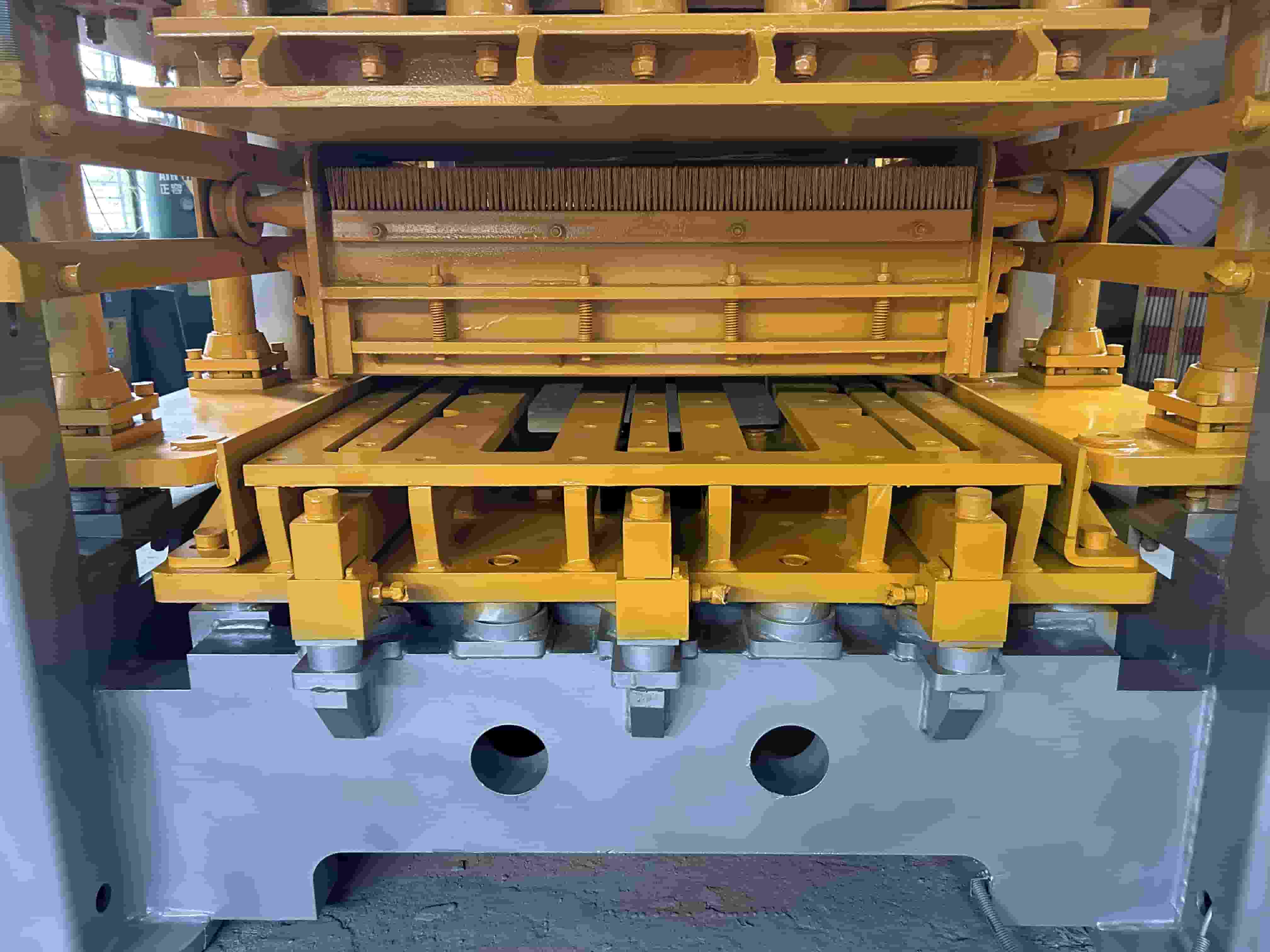

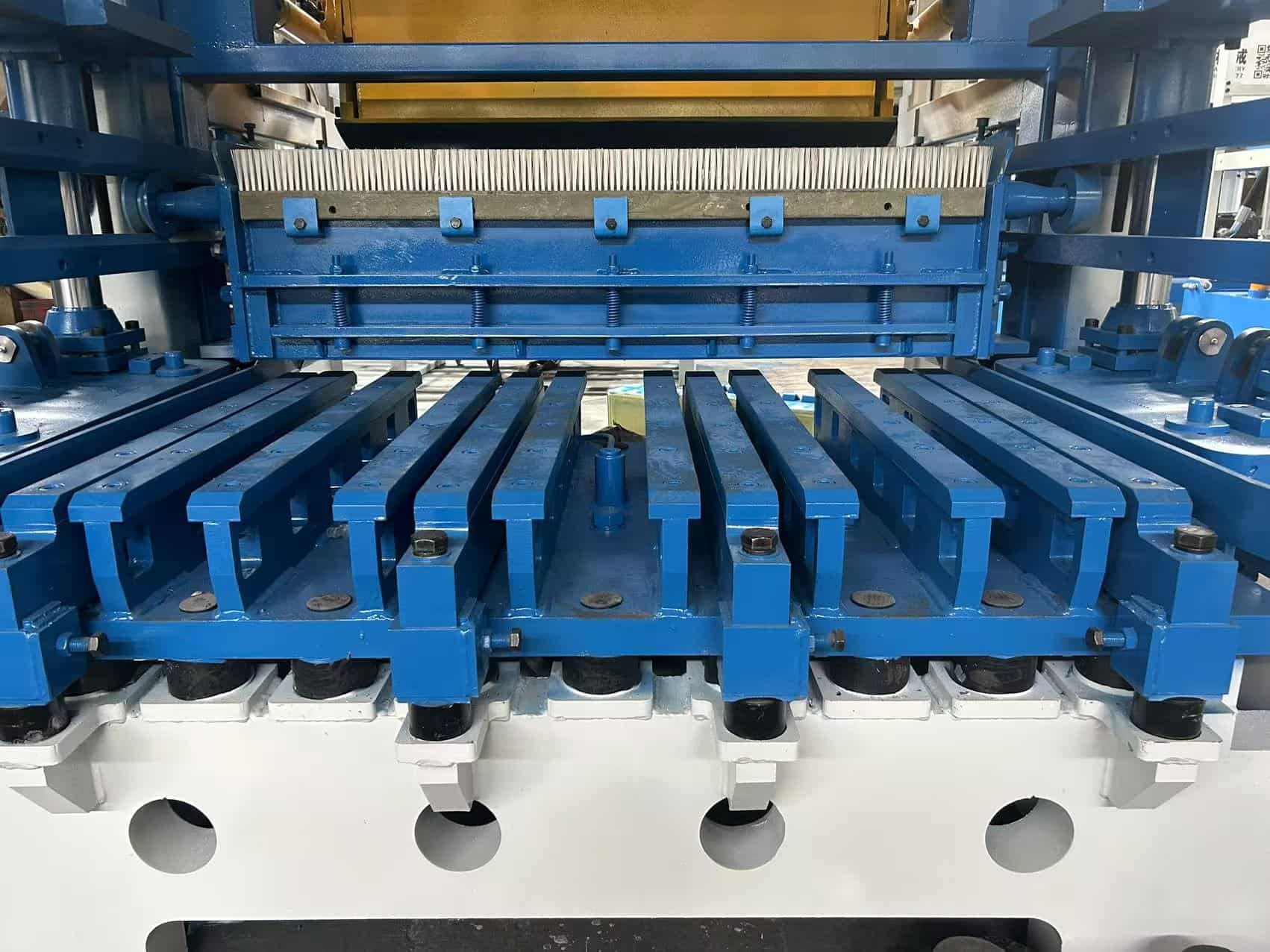

Maintaining the vibration box of a block making machine is crucial because it directly affects the compaction strength, shape accuracy, and surface finish of the blocks. Vibration boxes (or vibration units) generate intense mechanical vibration to compact concrete inside molds, and any malfunction here leads to poor-quality products.

Vibration Box Maintenance Guide

✅ Daily Maintenance

1. Clean the Vibration Box

• Remove dust, concrete splatter, and loose debris.

• Clean around the motor vents and mounting area.

2. Visual Inspection

• Check for cracks or damage in the vibration box casing or mounting bolts.

• Make sure the vibration unit is securely fastened to its base.

3. Monitor Vibration Performance

• Check for abnormal sounds, excessive vibration, or uneven compaction.

• Block height variations may signal problems in the vibration unit.

✅ Weekly Maintenance

1. Check Bearings

• Listen for grinding or knocking noises which could indicate worn bearings.

• Slightly loosen the cover to feel for excessive play or overheating.

2. Tighten All Bolts and Fasteners

• Inspect bolts on the motor, vibration table, and counterweights.

• Vibration causes loosening over time — torque to spec.

3. Inspect Motor Cooling

• Clean motor cooling fans and air intakes.

• Overheating can damage motor windings.

✅ Monthly Maintenance

1. Lubricate Bearings

• Use high-temperature bearing grease (check machine manual for specification).

• Do not overgrease — follow the recommended number of pumps with a grease gun.

2. Inspect Counterweights

• Ensure eccentric weights are securely mounted and correctly aligned.

• Check for imbalance that may cause inconsistent vibration.

3. Test Insulation & Wiring

• Check for frayed cables or damaged insulation near the motor.

• Use a multimeter to test winding resistance and insulation resistance if needed.

✅ Every 6 Months or 1000 Hours

1. Replace Bearings (if needed)

• If vibration has dropped or noise has increased despite greasing, replace bearings.

• Always use high-quality, heat-resistant bearing units.

2. Check Alignment of Vibration System

• Inspect vibration table-to-mold alignment.

• Misalignment can cause mold wear or damage.

3. Inspect Vibration Motor Mounts

• Look for metal fatigue, loose welds, or structural cracks at mounting points.

Tools & Materials Needed:

• Grease gun with high-temp grease

• Torque wrench

• Bearing puller (if replacement needed)

• Vibration meter (optional, for diagnosing performance)

• Cleaning tools (air blower, brush, scraper)

Signs of Vibration Box Problems:

• Block height inconsistency

• Reduced compaction or poor block finish

• Overheating of vibration motor

• Excessive or unusual noise during operation
