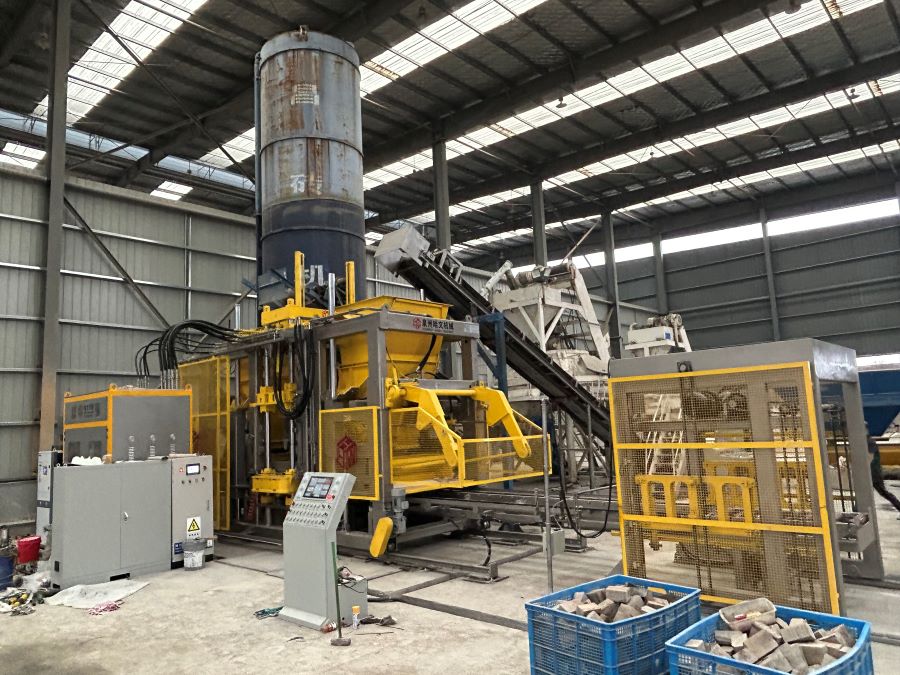

QT15 Automatic Paver Block Making Plant in Al Ain City,U.A.E.

With the pallet size at 1400x1200mm.

Performance Overview of Hawen Block Machine: Advanced Engineering for Optimal Production

The Hawen block machine integrates an advanced hydraulic system designed for superiorpressure stability and control. This syatem ensures uniform density and strength across alproduced bricks, whether for lightweight pavers or heavy-duty construction blocks. The hydraulicsyatem's ability to maintain conaistent presaure during compaction quarantees product guality andminimizes material waste.

A critical addition to the hydraulic system is the industrial oil chiller, which regulates thetemperature of hydraulic oil during prolonged operations. By preventing overheating, the chilleenaures the hydraulic ayatem operates within optimal thermal ranges, reducing wear oncomponents and extending service life. This feature is particularly vital in high-outputenvironments, where continuous operation demands reliable thermal management.

The hydraulic system's energy-efficient design reduces power consumption without compromisingperformance. Coupled with the industrial oil chiller it achieves a balance between productivity ancsustainability, making the machine ideal for eco-conscious industries.

2.Robust Mechanical System for Durability

The mechanical syatem of the Hawen block machine is built around a reinforced steel frameengineered to withatand high-pressure operations. lts rigid structure minimizes vibrations duringbrick compaction, ensuring precise alignment of molds and consistent product dimensions.

High-strength gears, bearings, and drive chains form the backbone of the mechanical system.These components are meticuloualy engineered for seamless power tranafer from the motor tcthe compaction unit, enabling rapid cyele times and high daily output capacities.

2.3 Mold Compatibility and Quick-adjust FeaturesThe mechanical syatem supports effortless integration with the mould system, allowing operatorsto switch between brick sizes and shapes within minutes. Automated mold alignment furtherstreamlines production changes, enhancing operational fexibility.

3. Intelligent Electrical Control System

3.1 User-friendly PLC Interface

The electrical control system employs a programmable logic controller (PLC) with a touchscreeninterface, enabling operators to adjust parameters such as compaction force, cycle time, andproduction volume. Pre-set programs for common brick types simplify operation, reducing trainingtime for new users.

3.2 Realtime Monitoring and DiagnosticsAdvanced sensors embedded in the machine provide real-time feedback on critical components.including the hydraulic system and induatrial oil chiller. The system automatically flags anomaliese.g.. pressure drops, temperature spikes) and suggesta corrective actions, minimizing unplanneddowntime.
