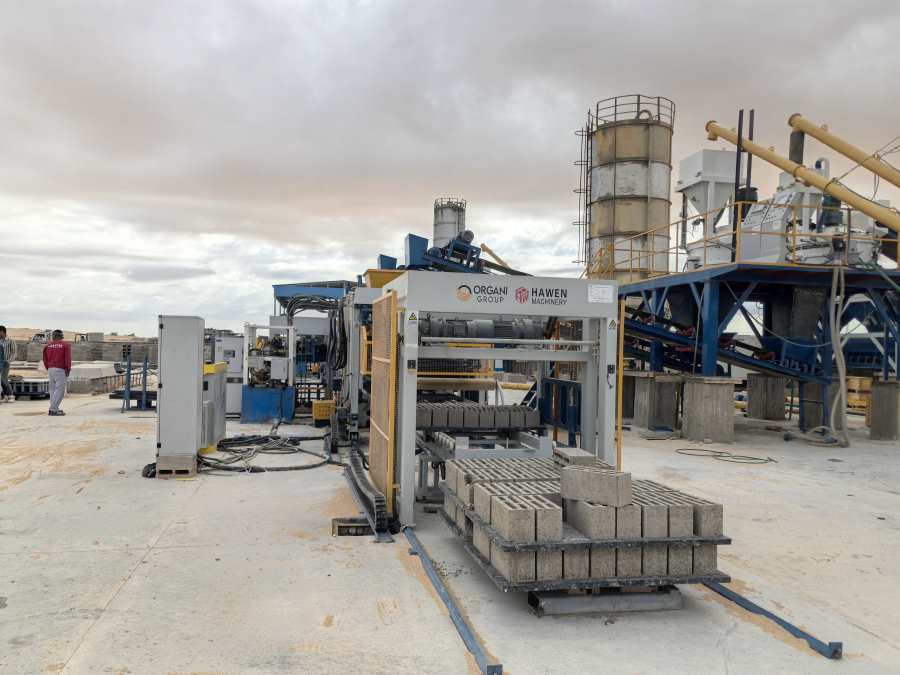

QT12 Automatic Paver Production Line in Egypt

Welcome to the official Hawen Machinery channel! In this video,we proudly showcase the successful collaboration with“Organi Group”,a renowned construction company in Egypt known for its expertise in delivering high-quality and complex projects across the region,where we implemented the HAWEN QT12-15 Automatic Paver Production Line. This advanced solution is designed for large-scale and high-quality production of concrete blocks and pavers. Combining strength, precision, and automation, this system has delivered outstanding performance in modern paving stone manufacturing, meeting the specific needs of  “Organi Group”'s projects.



QT12-15 Automatic Paver Production Line: The Ideal Choice for Professional Paver Manufacturing

The HAWEN QT12-15 Automatic Paver Production Line is engineered to produce rectangular pavers, solid blocks, and solid bricks with exceptional uniformity and durability. With its large pallet size of 1400×950mm, this production line ensures high output, stable operation, and long service life — making it the perfect choice for both established manufacturers and new investors.

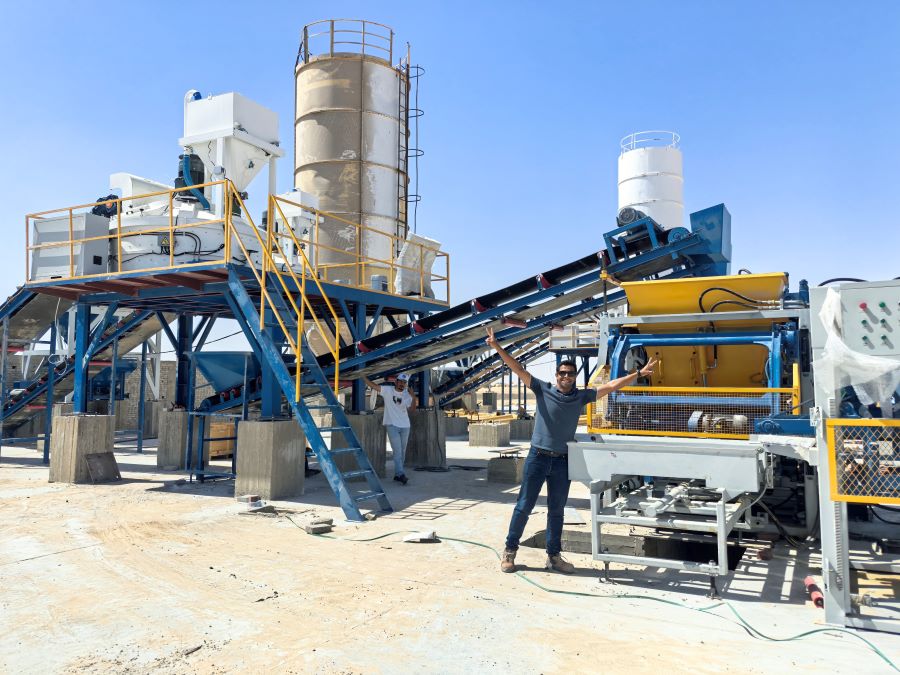

The QT12-15 block production line includes a batching machine, mixing system(1000L planetary mixer for bottom material, 330L for face material mixing), forming system, and automatic block stacker, ensuring a seamless and efficient production process from material preparation to final stacking.

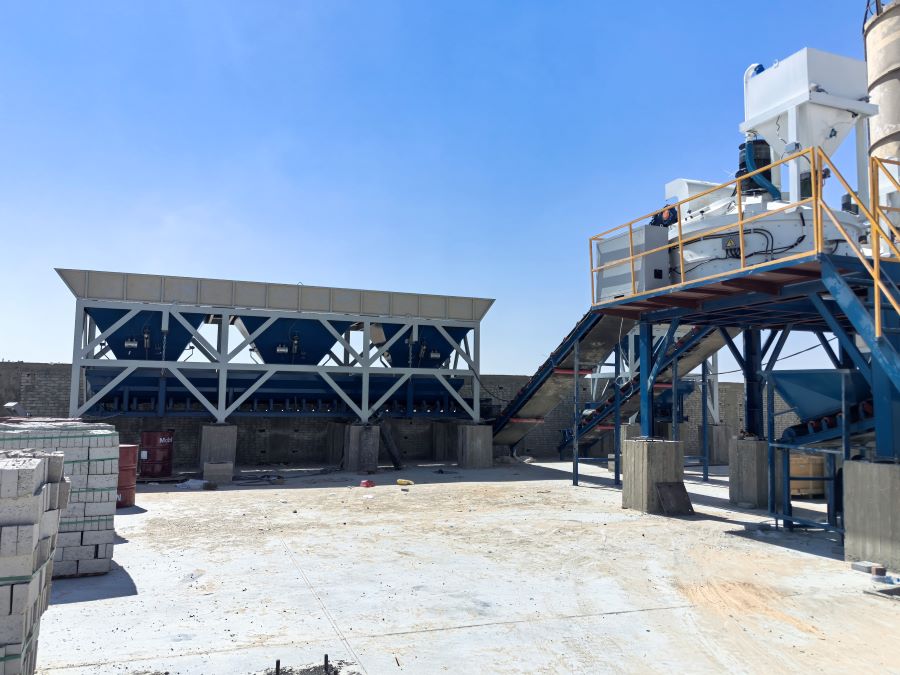

PL1600-III batching machine with three bins

Mixing system(1000L planetary mixer for bottom material, 330L for face material mixing)

Hydraulic System

Our QT12-15 block making machine is equipped with a high-performance hydraulic system using with Japanese "Yuken" double proportional valve and directional valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.

The hydraulic station is equipped with a high-performance American ALBERT hydraulic pump, a well-known brand recognized for its stable pressure output, long service life, and reliable performance in industrial applications.

By using Albert pumps, we guarantee long-term stability, reduced maintenance costs, and optimal performance for the hydraulic system of our machines.



Industrial Oil Cooler

The industrial oil cooler efficiently cools hydraulic oil in hydraulic system, preventing overheating and ensuring optimal performance. It helps maintain the ideal temperature, improving system efficiency and longevity.



Mechanical Structure

The mechanical system of our QT12-15 block making machine is built with a heavy-duty steel structure, ensuring high strength, stability, and long service life under continuous operation.

The mechanical components are precisely machined and surface-treated, ensuring tight tolerances, low noise, and excellent brick quality with every cycle.

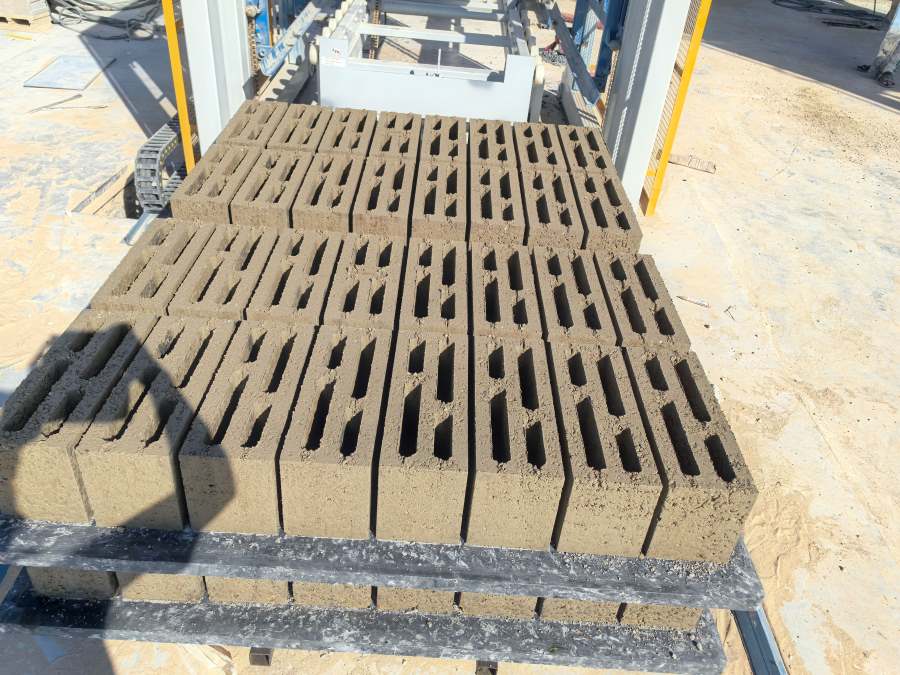

Hollow Block (400x150x200mm,16pcs/mould)

Electrical Control System

Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch panel control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate.

All control buttons and electrical components are from SIEMENS, and the PLC system can solve the problem remotely by connecting to the wireless for fast and efficient after-sales support.

To ensure stable and safe electrical control, our control system uses Switzerland ABB relays as standard components.

In addition, the thermal overload relays and motor protectors is also ABB brand.



Static and Dynamic Vibration Technology
By combining static pressing and dynamic vibration, the QT12-15 achieves a dense, durable, and smooth surface finish on every rectangular paver. This technology ensures that each product meets the highest standards of compressive strength and dimensional accuracy — essential for paving applications in both residential and commercial projects.



Moulds Included in the Shipment
For this project in Egypt, the shipment includes:



Solid Brick Mould (250x60x120mm,54pcs/mould)

Ideal for producing durable and compact bricks with a fine surface texture, perfect for construction projects requiring strength and quality.



Solid Block Mould (400x150x200mm,12pcs/mould)

Designed for high-strength structural blocks used in walls and foundations, ensuring excellent load-bearing capacity.



Hollow Block Mould (400x150x200mm,16pcs/mould and 400x120x200mm,20pcs/mould)

Produces lightweight and energy-efficient hollow blocks, perfect for both residential and commercial buildings.

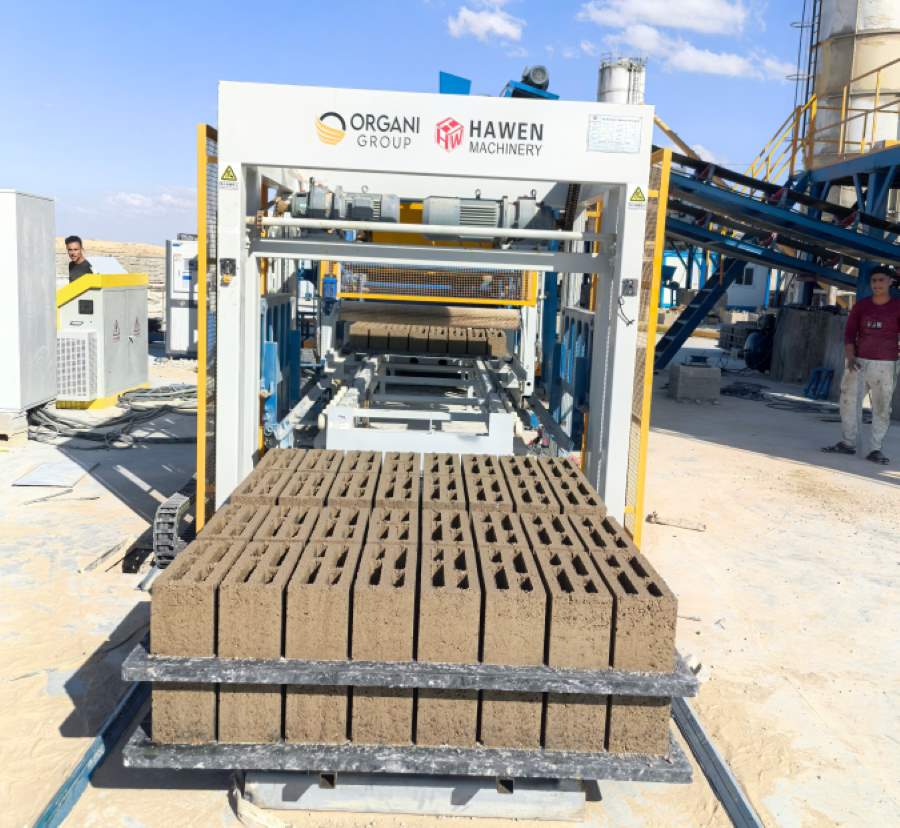

Hollow Block  (400x150x200mm,16pcs/mould)

Uni Paver Mould (240x120x60mm,30pcs/mould)

Creates uniform, durable pavers ideal for outdoor spaces like driveways and pathways.



Hexagonal Paver Mould (228x197x60mm,26pcs/mould)

Produces unique, interlocking hexagonal pavers, perfect for creative and durable landscaping.



Rectangular Paver Mould (200x100x60mm,44pcs/mould and 200x100x80mm,44pcs/mould)

Ideal for creating strong and aesthetically appealing rectangular pavers for pathways and outdoor spaces.

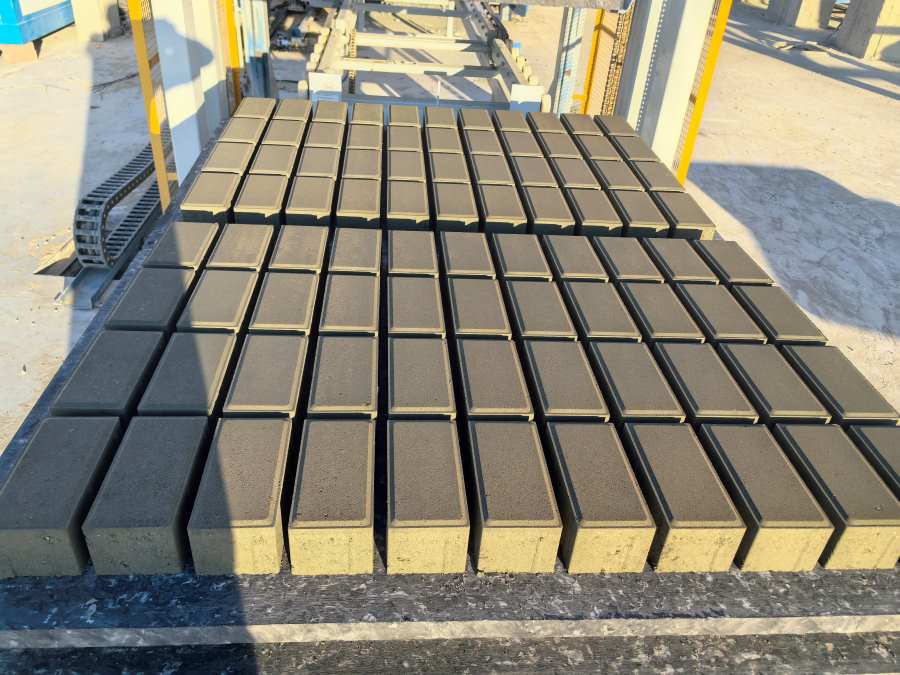

Rectangular Paver  (200x100x60mm,44pcs/mould )

Behaton Paver Mould (198x163x60mm,30pcs/mould)

Produces interlocking Behaton pavers, suitable for high-traffic areas with excellent load-bearing capacity.



Why Choose the HAWEN QT12-15 Automatic Paver Production Line?

High Production Efficiency – Designed for continuous, high-speed operation to maximize output.

Precision Engineering – Delivers excellent consistency and product uniformity.

Versatile Mould Options – Capable of producing rectangular pavers, solid blocks, and solid bricks.

Low Maintenance Design – Built with durable components for long-term reliability.

Fully Automated System – Reduces labor costs and enhances operational safety.



Why Hawen Machinery?
At Hawen Machinery, we specialize in manufacturing advanced block and paver production systems that combine technology, efficiency, and durability. Our QT12-15 Automatic Paver Production Line represents the best of modern engineering — offering clients worldwide a dependable and profitable solution for concrete paver manufacturing. From project consultation and installation to after-sales support, Hawen Machinery ensures professional service every step of the way.
