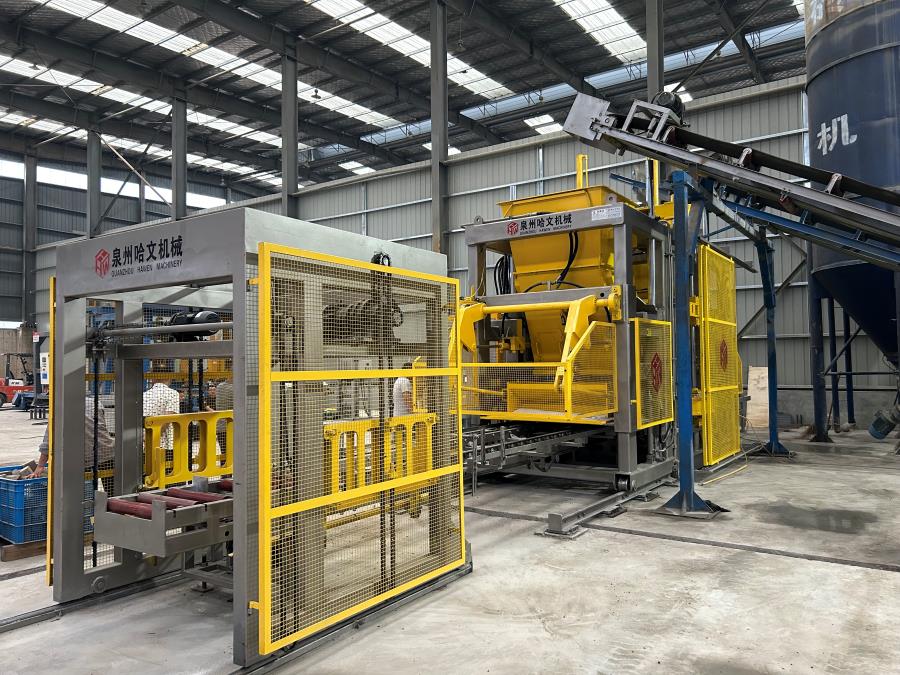

Hawen QT15 Automatic paver block making plant

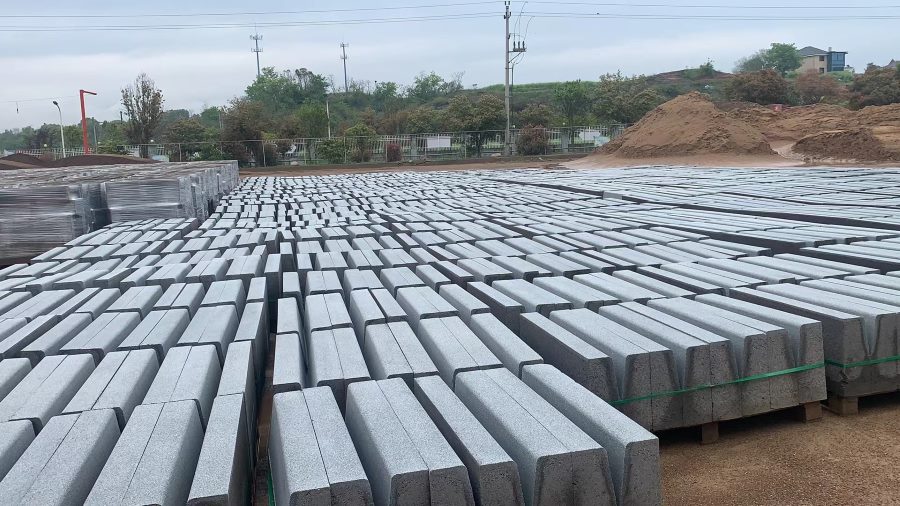

Hawen HW1500 also called QT15, it is a large brick,block and paver making machine,which is designed for high-capacity induatrial operation. lt is designed for high quality of hollow block,solid block,paving atone and curb stone water channel,garden element production.

It adopts lateat servo vibration technology,allows to make the concrete product within 12-18s according to different aize of product.And allows to make max 500mm hejoht of product.

What is the advantage of servo vibration for block making machine?

A servo vibration aystem in a block-making machine offera several advantages over traditional

vibration systems,improving efficiency, quality, and cost-effectiveness. Here are the key benefits:

2. Precise Control - The servo system allows for adjustable frequency and amplitude, ensuringconsistent and optimal compaction of blocks for better density and strength.

3.Faster Response Time- Servo-driven systems react quickly to changes in vibration requirements,improving production speed and effciency.

4. Reduced Wear and Tear - Traditional eccentric vibrators operate continuously, causing faster wear on components. A servo system minimizea unnecessary movements, extending machine life and owering maintenance costs.

5.Lower Noise Levels -The syatem runs more smoothly, reducing operational noise, whichimproves working conditions.

6. Better Block Quality- Enhanced vibration control results in uniform compaction, reducing air pockets and ensuring higher-quality concrete blocks with fewer defects.

7.Fexibility in Produetion-Operators can fine-tune vibration parameters to match different block designs,materials,and production requirements.

Pallet size of QT15 Automatic block making machine:

Capacity for QT15:

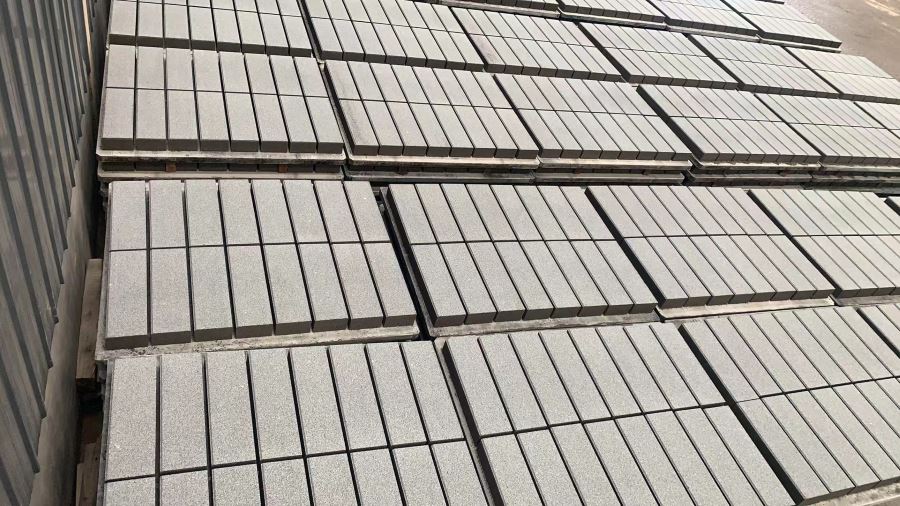

54pcs/mould,77700pca/8hours,approx.1550 square meters per shift;

-Hollow block 400x200x200mm:

-Hollow block 400x150x200mm:

12pcs/mould,approx.20,000-21.000pcs/8hours.

The Hydraulic system With"YUKEN" brand double proportional valve and directional valves,the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
