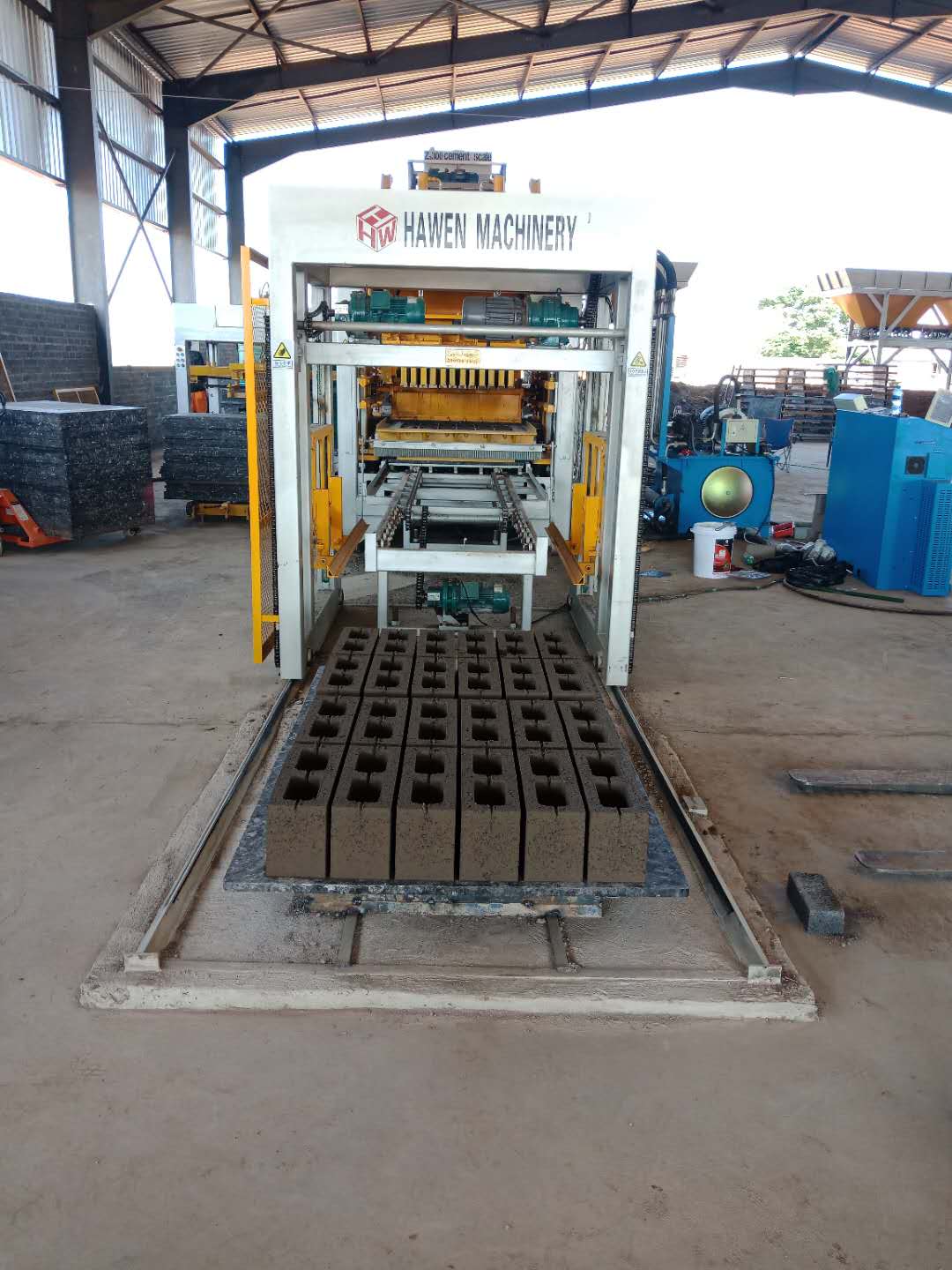

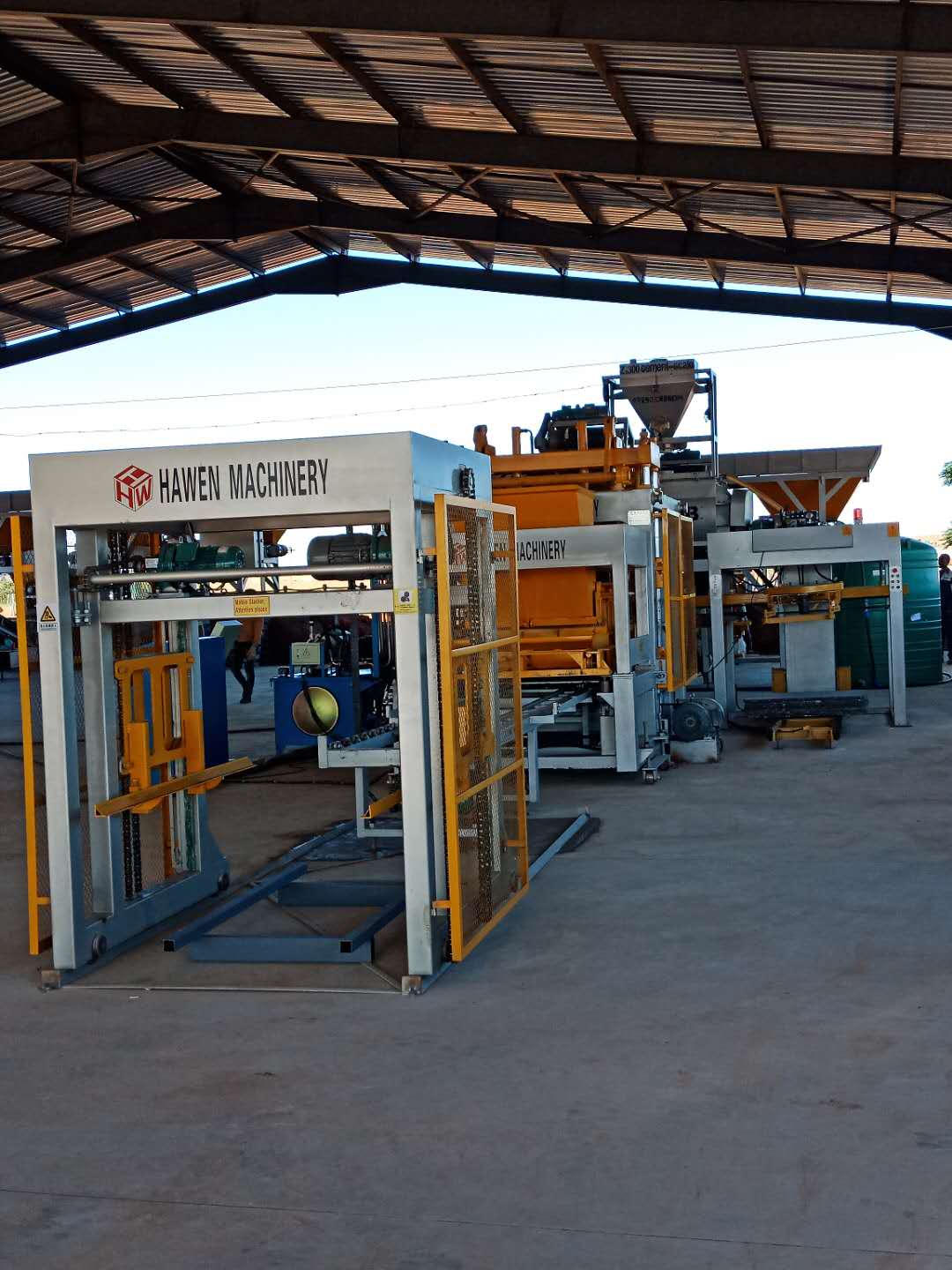

Hawen QT10-15 Automatic Brick Making Plant

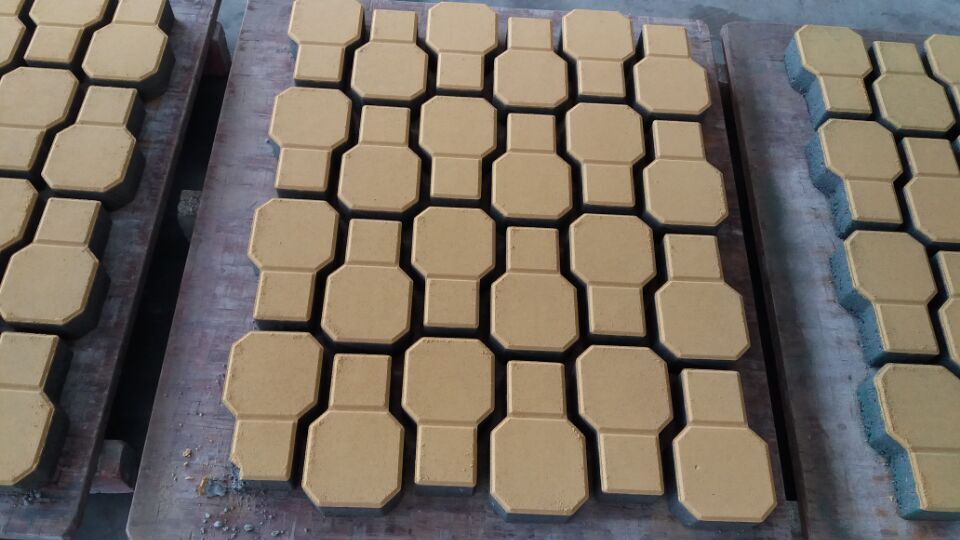

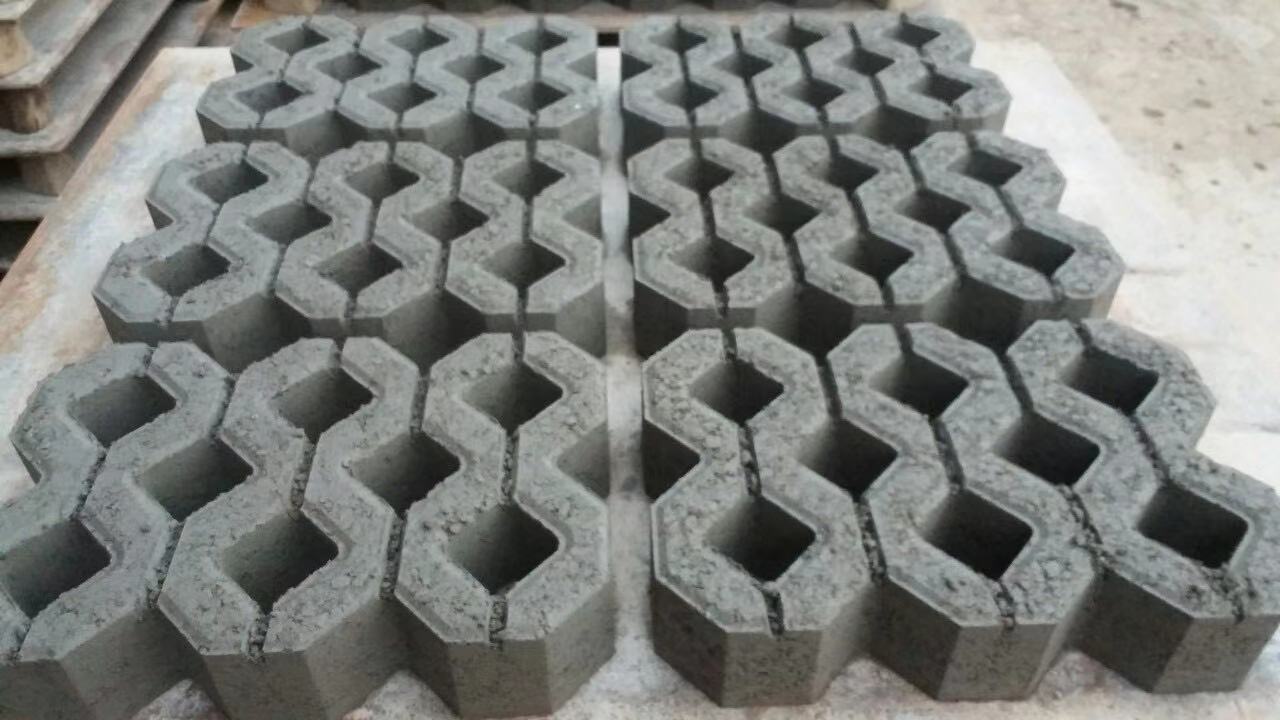

HAWEN QT10-15 block making machine is one of the most popular Automatic block makingmachine in the market. It is a multifunctional block making machine,allows to make the hollowblock,interlocking paving stone,curb stone by changing the mould only.

Pallet size of machine: 1150x950mm

10pcs/mould,approx.14000~15000pcs/8hours:

12pcs/mouldapprox.17000~18000pcs/8hours

8pcs/mould,approx.11000~12000pcs/8hours.

45pcs/mould.86000pcs8hours per shift

60pcs/mould,11500pcs/8hours per shift

24pcs/mould,52000pcs/8hours,approx.1000 square meters per shift

The control system of brick making machine is equipped with SIEMENS PLC or VigorPLC,production program, malfunction diagnosis system and remote control function,easy foroperation and maintenance.

The Hydraulic system With"YUKEN" brand double proportional valve and directional valves, the flowand pressure of each movement could be adjuated on touch panel,machine running amoothlywithout impact,through the double vane pump,different actions run simultaneously,greatly improveproduction efficiency.
