Welcome to HAWEN Machinery, your reliable partner in advanced concrete block and paver production solutions.
This video showcases the QT12 Automatic Paver Block Making Plant, successfully operating in Egypt for Organi Group, one of the country’s leading construction material manufacturers.

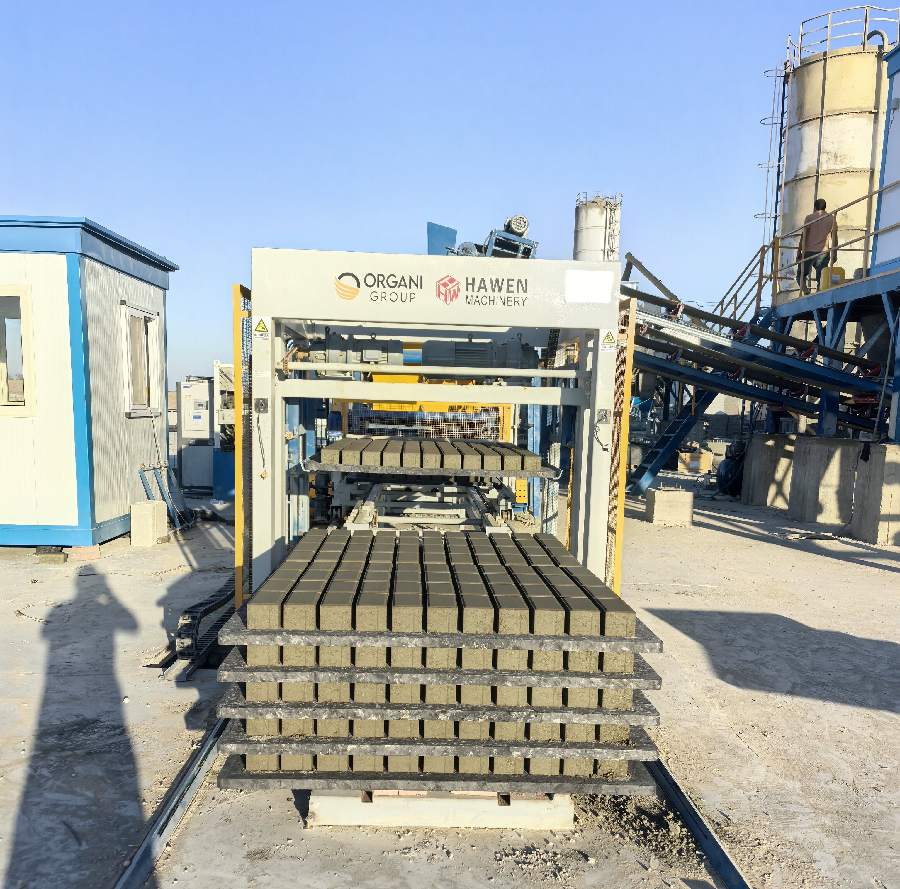

Rectangle paver 44 pcs/mould

Efficient Material Batching System

The production process begins with the PL1600-III Aggregate Batching Machine, designed with three separate bins for different materials such as sand, gravel, and crushed stone.
Each material is accurately weighed according to preset formulas, ensuring precise mix ratios and consistent product quality.

Once the weighing is completed, materials are discharged from the batching machine hopper, then flow smoothly from the weighing bin to the conveyor belt.
The belt conveyor efficiently transfers these materials to the mixing station, maintaining continuous and stable feeding throughout production.

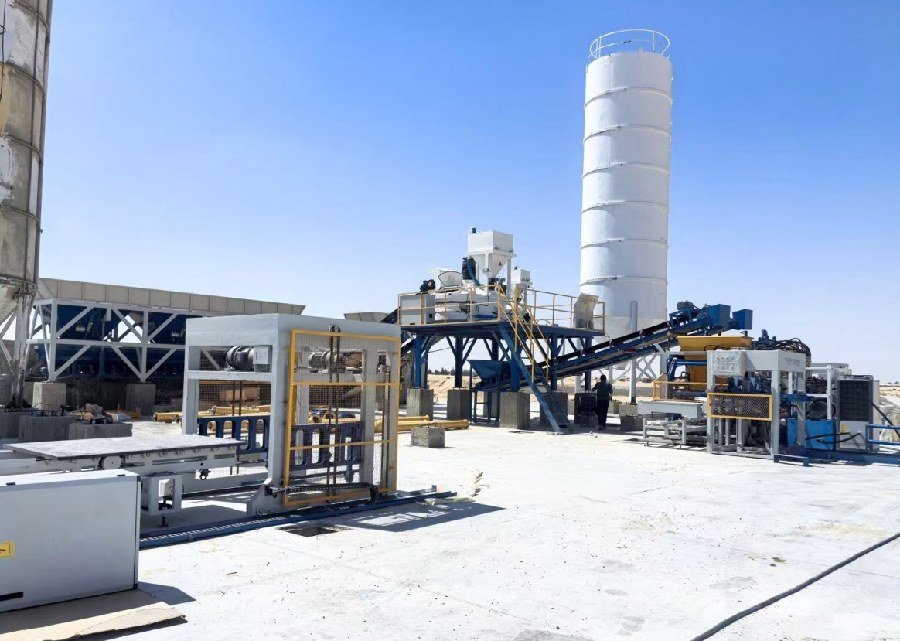

Batching and mixing system

Advanced Mixing Technology

At the mixing section, the plant is equipped with planetary mixers — a 1000L mixer for bottom material and a 330L mixer for face material.
The planetary design ensures high-efficiency mixing with full coverage of all components inside the drum.
This guarantees uniform concrete consistency, better workability, and improved bonding strength for each block and paver produced.

The face mix, used for decorative pavers, achieves a smoother surface and richer color tone, while the base mix provides strength and durability.

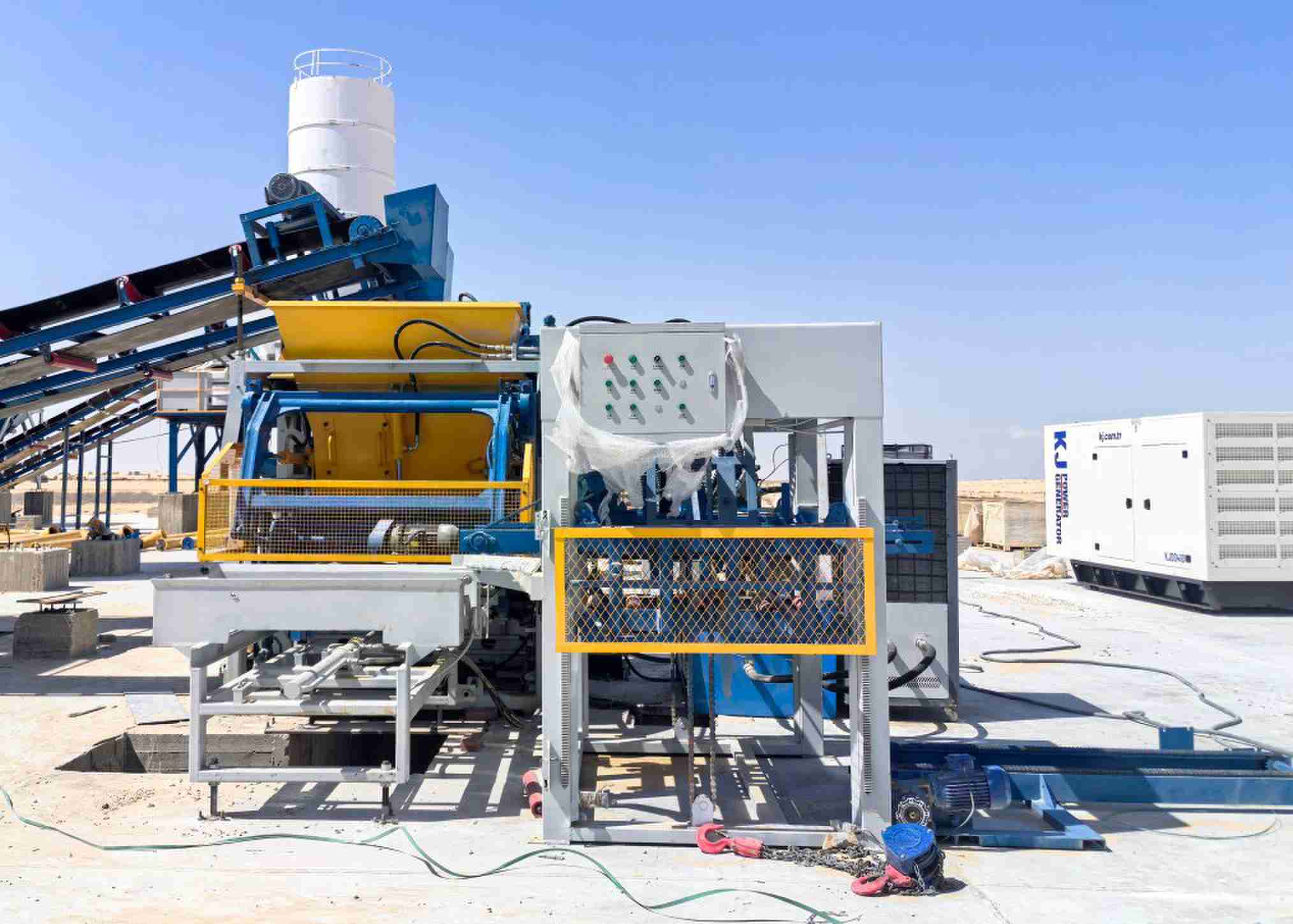

QT12-15 Main Forming Machine

The heart of this production line is the QT12-15 Automatic Block Making Machine, a high-performance model known for its stability, precision, and efficiency.
It adopts a four shafts gearbox vibration system and proportional hydraulic control, which distribute vibration energy evenly and deliver perfect compaction with every press.

Blocks and pavers made by the QT12-15 feature high density, sharp edges, and consistent dimensions, suitable for heavy-duty construction and landscaping projects.

Automatic pallet provider

Reliable Hydraulic and Cooling System

The hydraulic system is powered by top-quality components, including Japanese Yuken proportional valves and a U.S. ALBERT hydraulic pump.
This configuration allows smooth operation, quick response, and precise pressure control.

To ensure continuous stability during long production shifts, an industrial oil cooler is installed.
It regulates the hydraulic oil temperature, preventing overheating and ensuring long service life of all hydraulic components.

Intelligent Control System

Automation is at the core of this production line.
The Siemens PLC and touch screen control system provide intuitive operation, real-time data monitoring, and fast diagnostics.
All movements — from material feeding and vibration to pallet stacking — are coordinated automatically, ensuring consistent output with minimal manual intervention.

The control system supports recipe storage and quick changeover, making it easy to switch between different block or paver types.

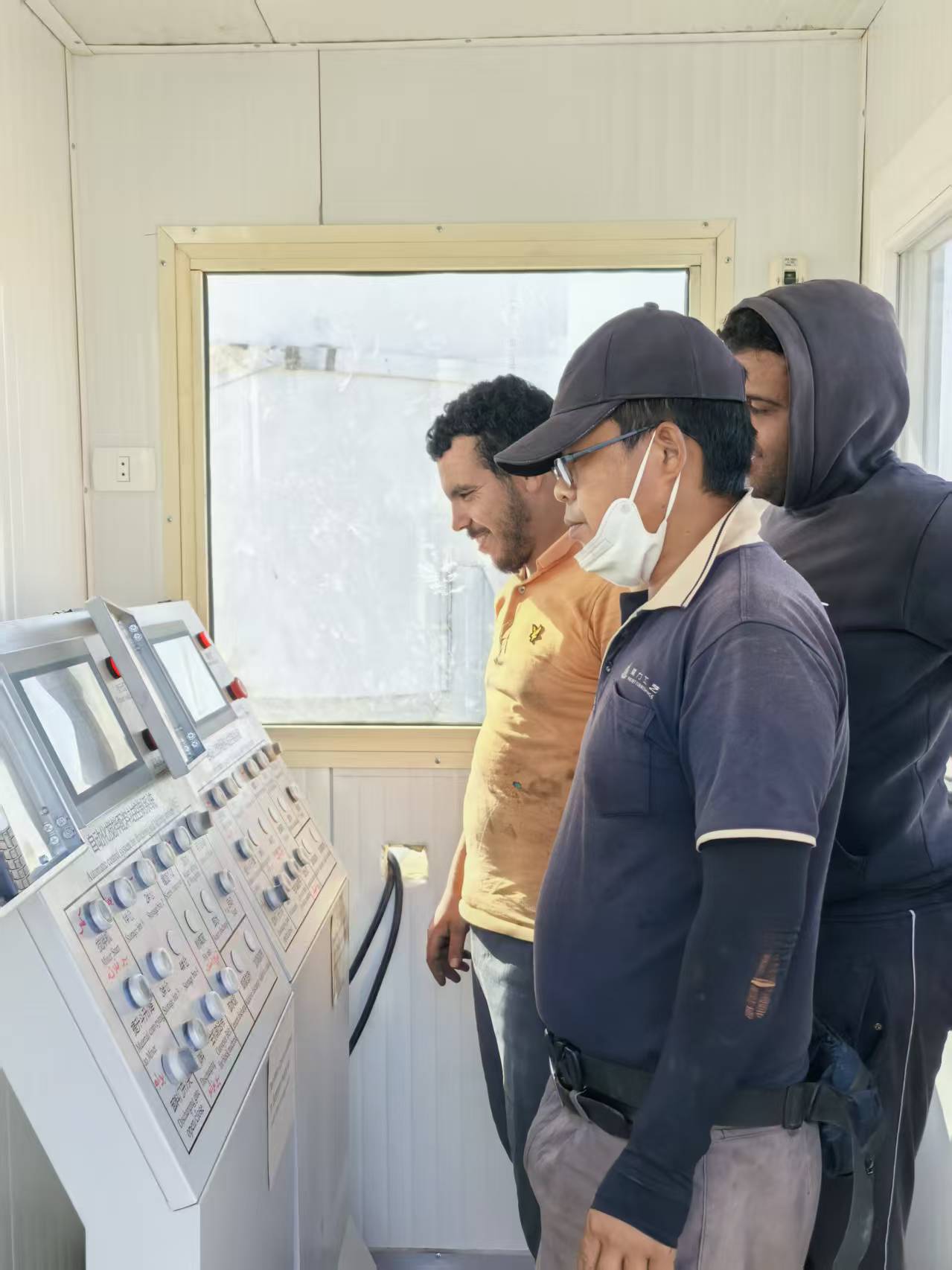

Control cabinet

Automatic Block Stacking and Handling

After forming, products are transferred automatically to the curing area.
The Automatic Stacker System neatly stacks the freshly molded blocks and pavers onto pallets for curing.
This automation significantly reduces labor intensity, improves efficiency, and keeps the working environment clean and organized.

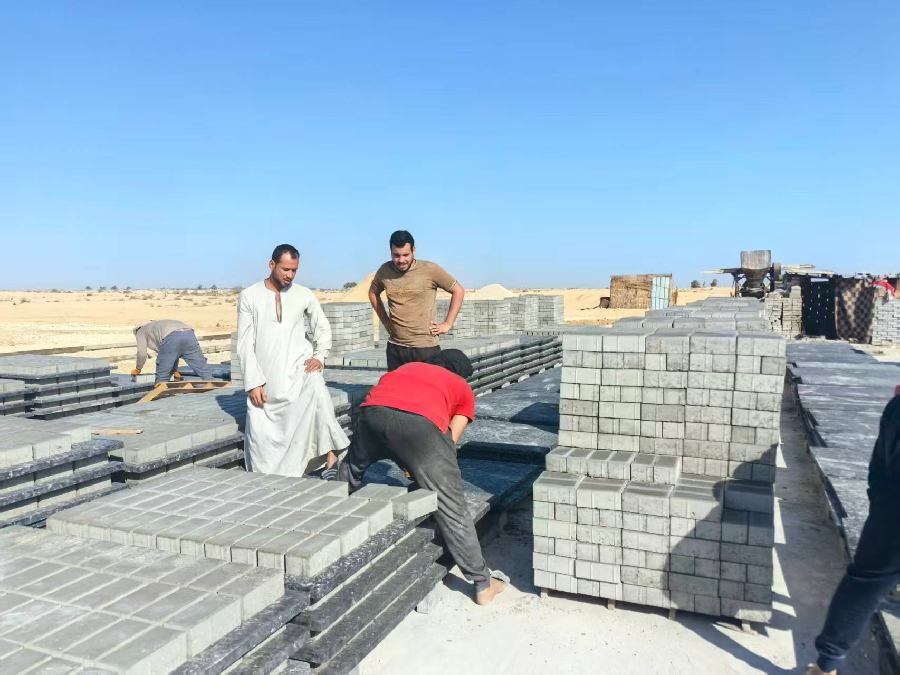

Paver block in stock yard

Product Variety and Local Application

Using this complete production line, Organi Group manufactures a wide range of concrete products, including:

Hollow blocks for structural walls

Solid bricks for construction application

Rectangular and hexagonal pavers for walkways and outdoor areas

Behaton interlocking pavers for heavy-traffic pavements

Each product meets international standards for compressive strength, dimensional accuracy, and surface finish — ensuring durability and aesthetic appeal.

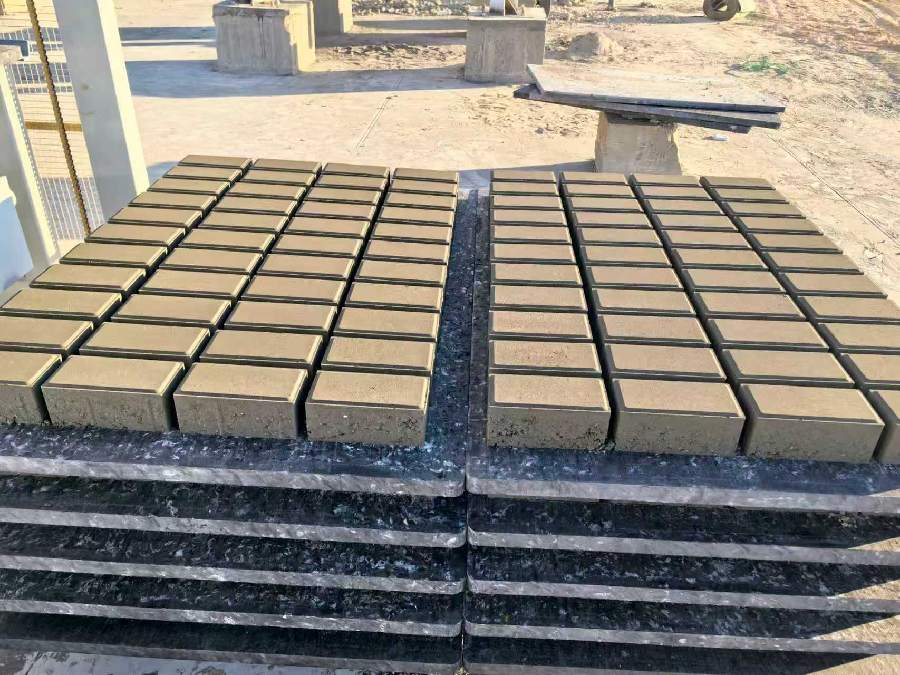

Rectangle paver 44 pcs/mould

Performance in Egypt

Located in Rafah, Egypt, the double QT12-15 lines operate smoothly, maintaining high production efficiency and stable quality under local climatic conditions.
The system delivers consistent performance even during peak operation periods, reflecting HAWEN’s commitment to reliability and precision engineering.

Organi Group has expressed strong satisfaction with the machine’s efficiency, block quality, and low maintenance requirement — confirming their trust in Hawen’s manufacturing capability and after-sales support.

Conclusion

The QT12 Automatic Paver Block Making Plant combines intelligent automation, robust hydraulic technology, and precision-engineered moulds to achieve exceptional results.
With high output, long service life, and user-friendly control, it sets a new benchmark for modern concrete production in Egypt and beyond.
