QT10-15 Automatic Interlocking Block Making Plant

QT10-15 Automatic Interlocking Block Making Plant

Take a full tour of the QT10-15 Automatic Interlocking Block Making Plant by HAWEN Machinery – an advanced, high-performance solution tailored for the mass production of interlocking concrete blocks with side holes, decorative paving blocks, and other modular concrete products.

This fully automatic system is designed to streamline every stage of production, from raw material mixing to finished block packaging, while ensuring strength, precision, and consistency.

Key Features and Process Overview:

✅Automatic Forming System

The heart of the plant – this precision forming system uses high-pressure vibration and hydraulic control to shape interlocking blocks with side-through holes, ensuring optimal compaction and perfect dimensions.

✅Bottom Layer Feeding + Topping Layer Feeding

Dual-layer feeding system enables the production of multi-colored paving blocks and double-layer interlock blocks, enhancing both aesthetics and durability.

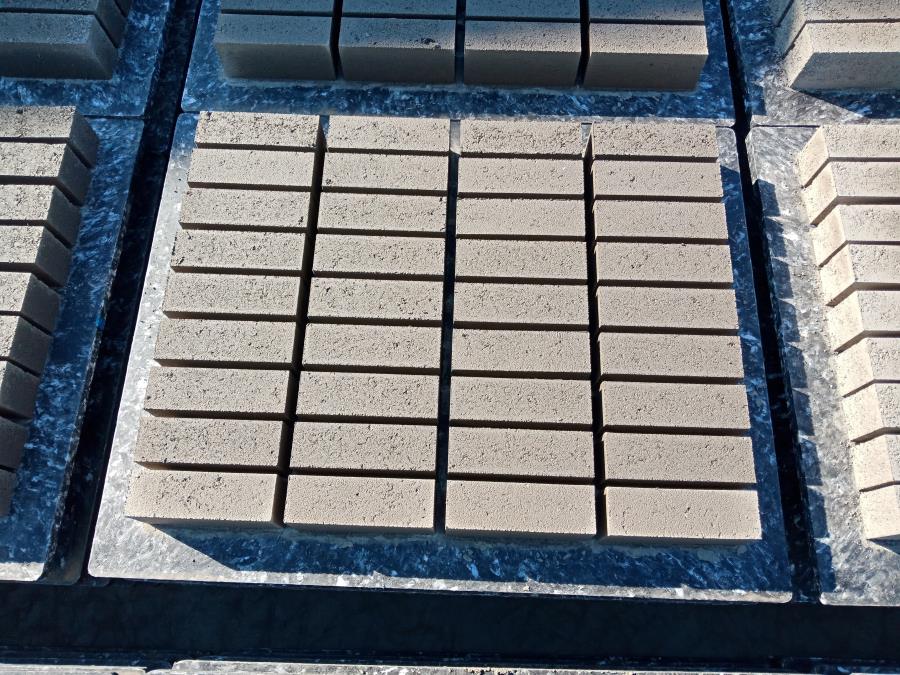

✅Pallet Size & Block Design

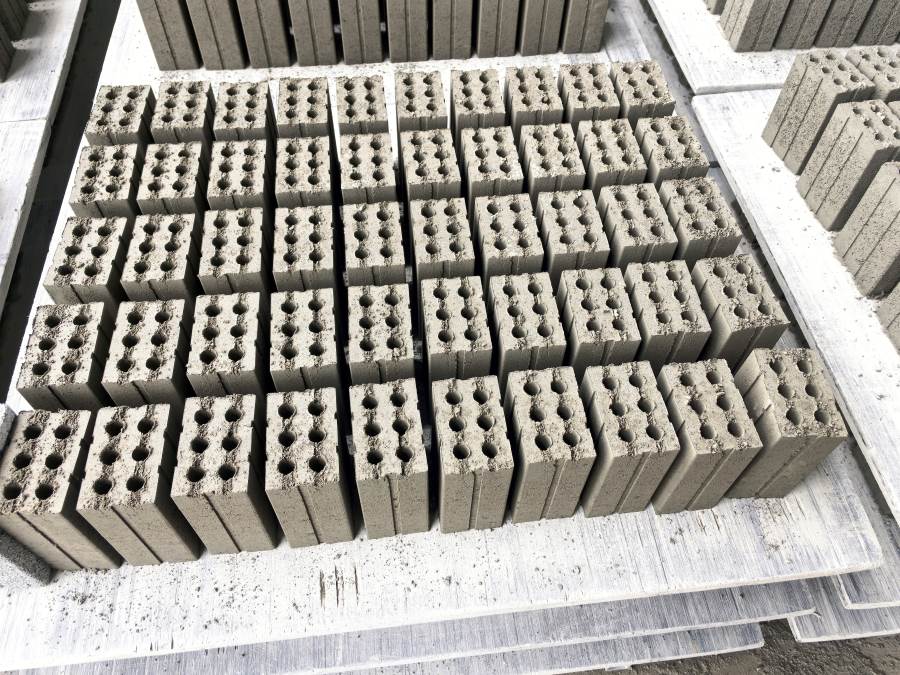

1.Pallet Size: 1100x950mm,Suitable for producing large-format interlocking blocks,for 8inch hollow block at 10pcs per drop, and for 6inch hollow block at 12pcs per mould.

2.Incorporates side holes for enhanced lock-in-place performance and drainage

3.Flexible mould options for various shapes and sizes

✅Wet Block Handling and Curing Process

1.Automatic Block Stacking system stacks freshly formed blocks on pallets

2.Forklift transfers the wet block stacks to the curing yard

3.Ensures uniform hydration and strength development during curing

4.Optional wet block conveying system available for larger plants

✅Automatic Pallet Provider

Ensures continuous feeding of pallets to the forming machine, reducing downtime and manual handling.

✅High-Efficiency Mixing System

Precision mixers provide consistent material blending, optimized for interlocking block production with color face layer and structural layer separation.

✅Offline Cuber System (End-of-Line Automation)

1.After curing, blocks are conveyed to the Offline Cuber Station

2.Automatic alignment, grouping, and cubing for easy forklift handling

3.Compatible with automatic strapping or wrapping systems

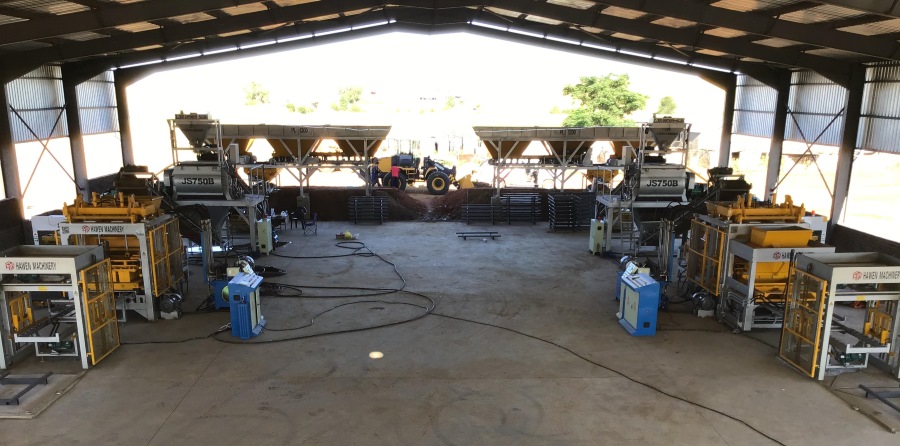

Plant Overview

This video gives a complete bird’s eye view of the full production line, showing each step from mixing to curing to final cubing – a perfect reference for investors, factory planners, and engineers.

✅Production Benefits:

1.Continuous automated operation with minimal manual labor

2.Modular upgrades for higher capacity or additional product types

3.Smart design for energy saving and low maintenance

4.Eco-friendly and low waste process

5.Compatible with various block types: interlocking pavers, hollow blocks, solid bricks, curbstones, and more

Why Choose HAWEN Machinery?

HAWEN Machinery offers reliable, heavy-duty, and innovative concrete block solutions trusted by clients across more than 30 countries.

With German-standard hydraulic systems, SIEMENS PLCs, and a professional engineering team, we ensure your plant runs at peak performance.

From installation and training to lifelong service and technical support, HAWEN is your long-term partner in modern building material manufacturing.
