QT8 Brick making machine shipped to client in South Africa

QT8 Brick making machine shipped to client in South Africa

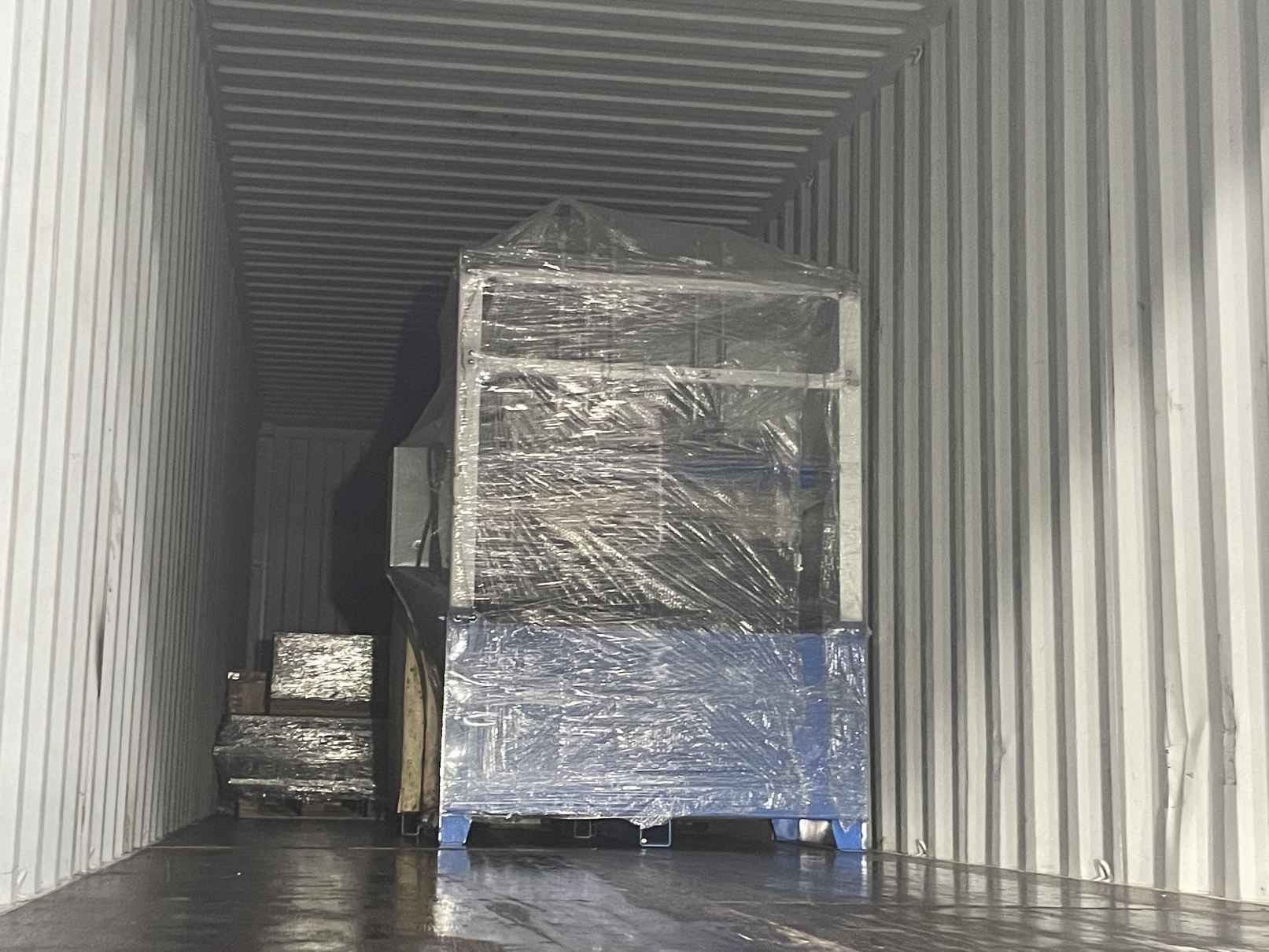

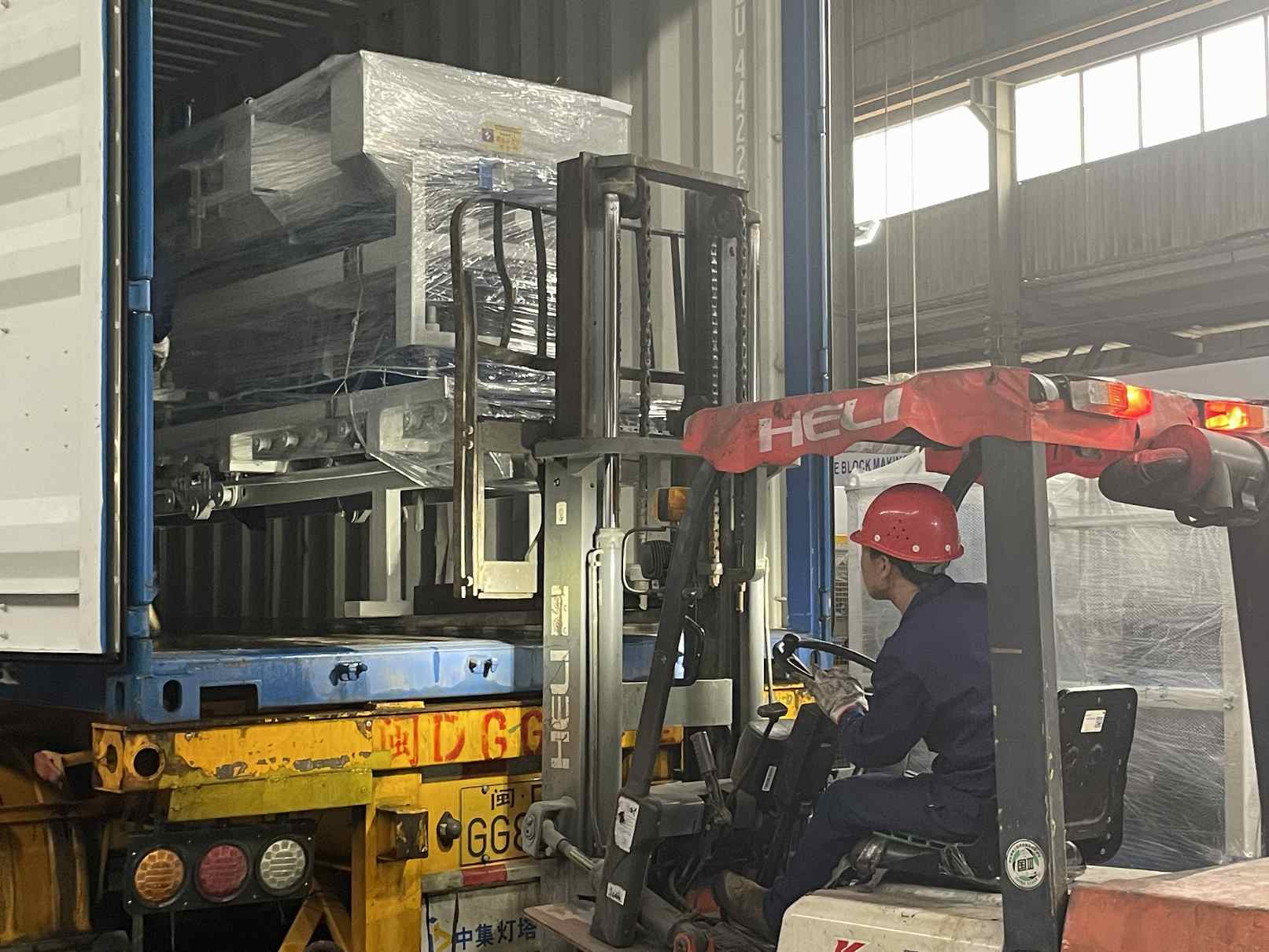

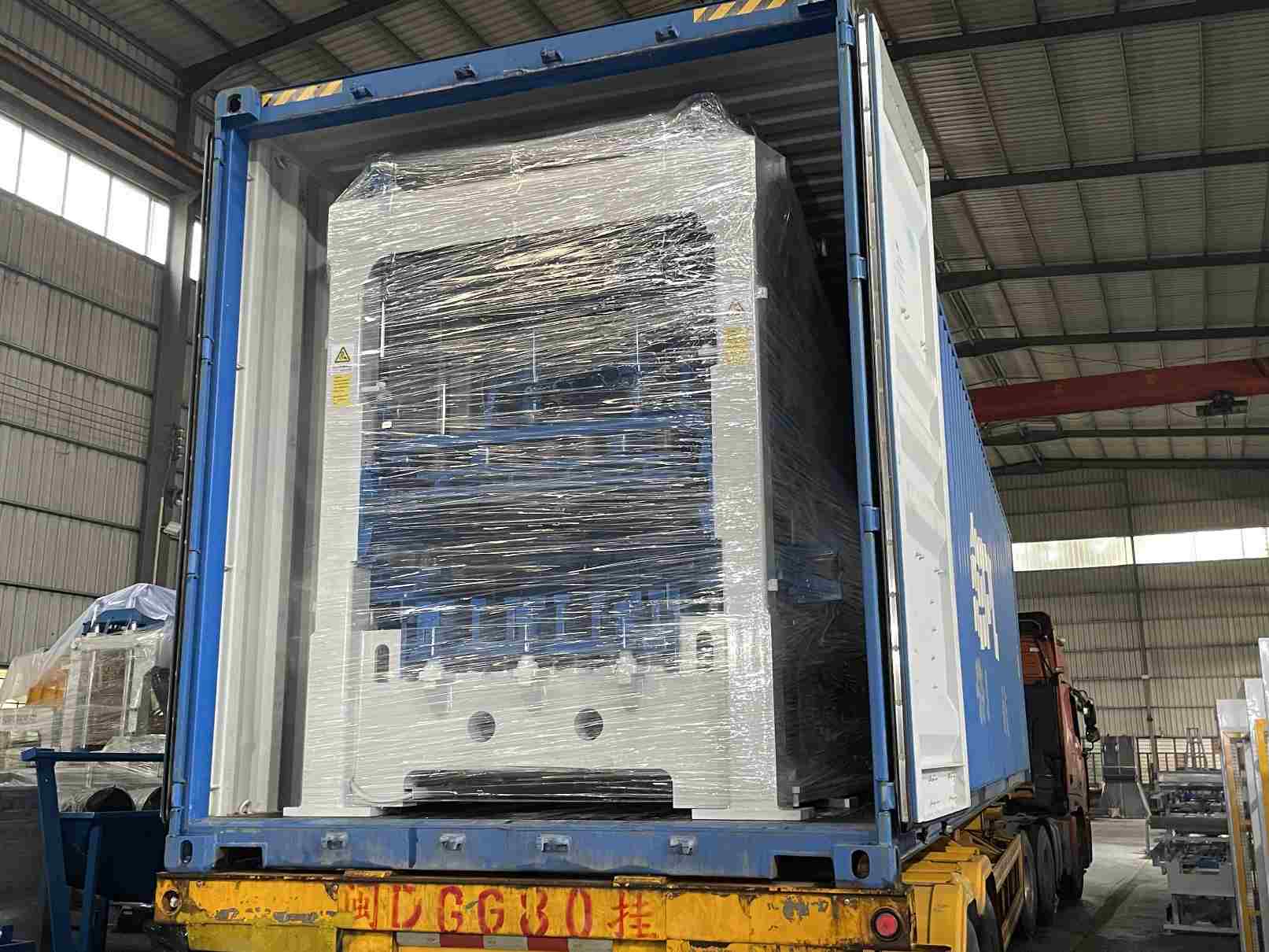

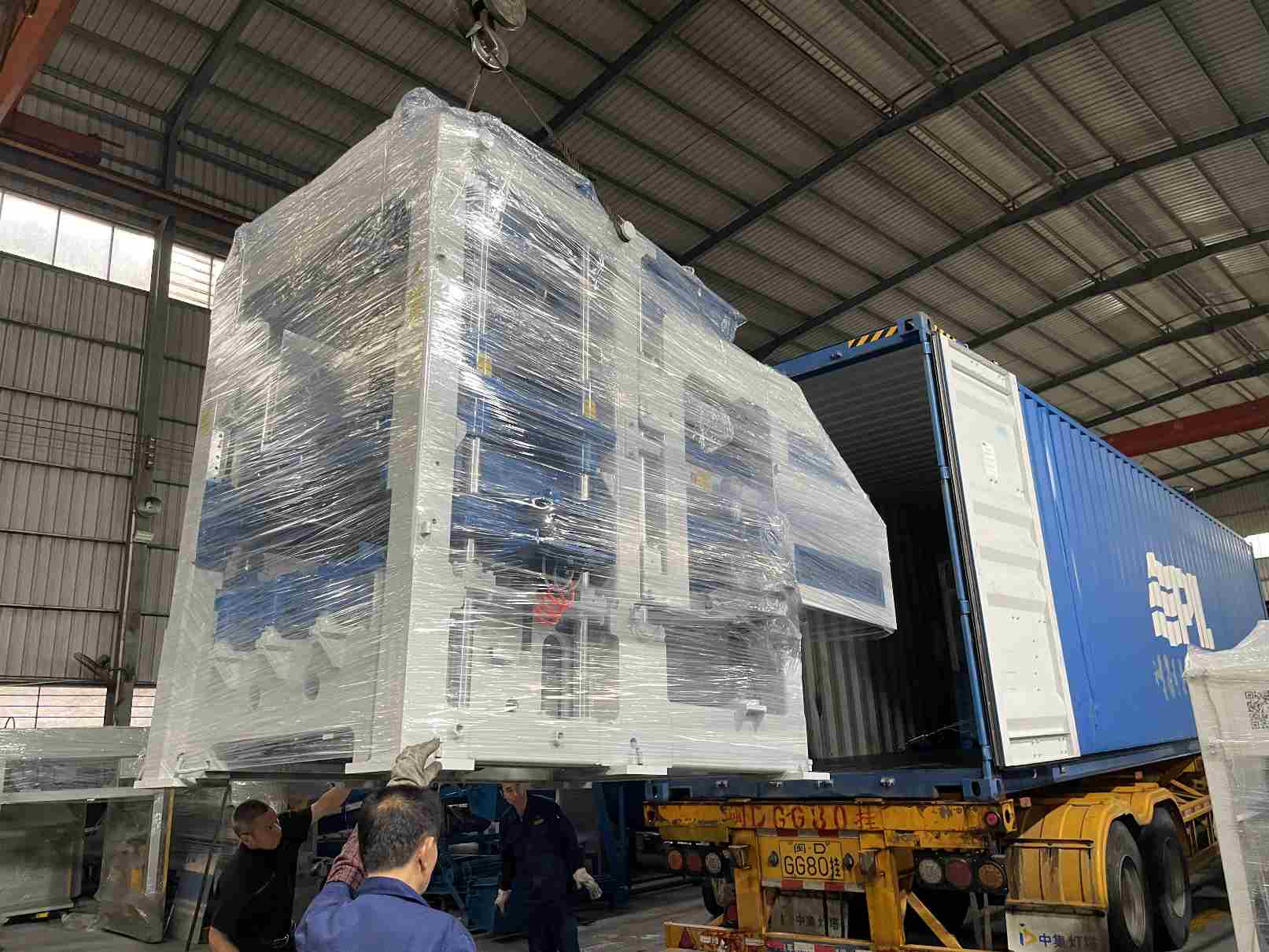

The QT8 block making machine with a pallet size:980×900mm, had been carefully loaded into a 40' HQ on 15 June 2026, with each component professionally reinforced and secured to prevent movement or damage during transit.

Main Components of the Shipment

The complete block making plant consists of the following major components:

1. Main Forming Machine

The main forming machine is the core component of the production line, responsible for the automatic production of concrete blocks through precise feeding, vibration, compression, and molding processes.

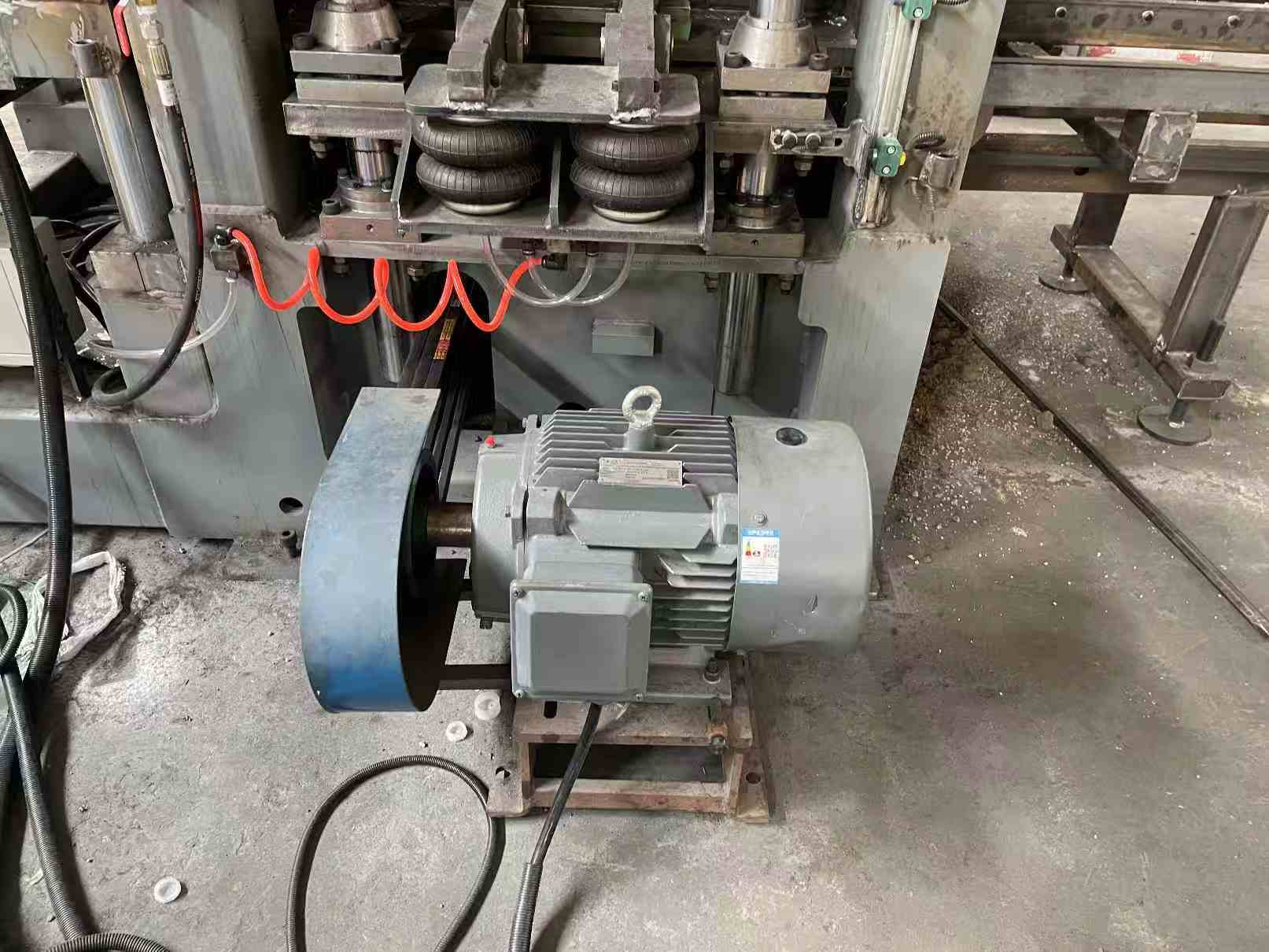

The machine is equipped with high-performance Siemens vibration motors. These motors deliver powerful and consistent vibration force, ensuring optimal concrete compaction, higher block density, and improved compressive strength.

The machine further incorporates a CONTITECH airbag clamping system, which securely locks the mold box during the vibration process. By effectively absorbing vibration energy and minimizing mechanical stress, the airbag system improves vibration transmission efficiency, reduces wear on machine components, and extends the service life of both the machine and molds.

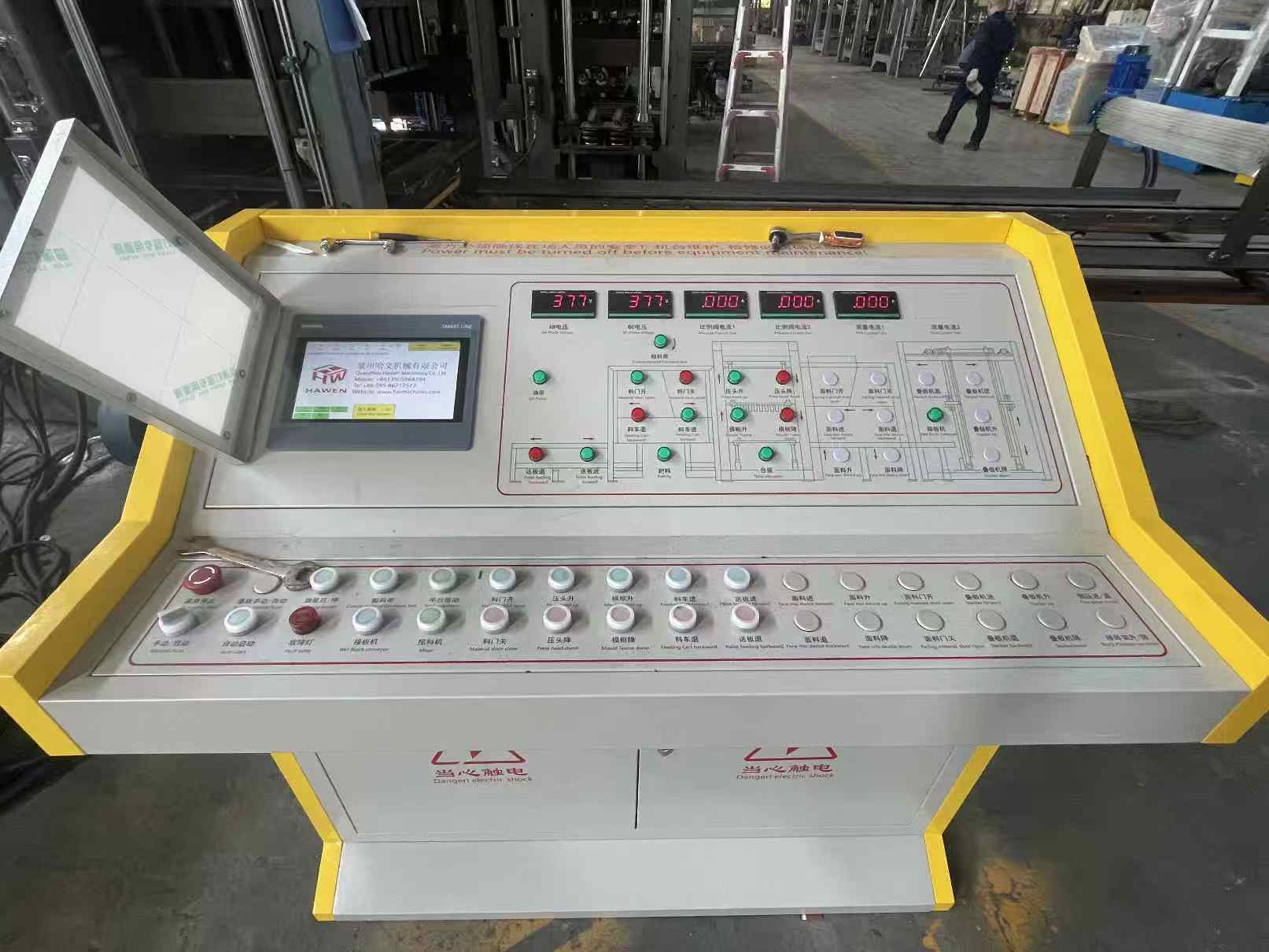

2. PLC Control Cabinet

An advanced electrical control system used to manage and monitor the operation of the entire production line, ensuring stable performance and efficient production.The machine is equipped with an advanced German Siemens PLC platform, touch screen and Swiss ABB relays.

3. Hydraulic Station

The hydraulic system is equipped with high-quality German Siemens motor, American ALBERT hydraulic pumps, Japanese Yuken hydraulic valves, precision pressure control units, and Italian Manuli hydraulic hoses.

4. Spare Parts Box

Contains essential spare parts and maintenance tools supplied with the machine to support routine servicing and minimize downtime.

Factory testing

Prior to shipment, the machine underwent comprehensive operational testing, including vibration, hydraulic, electrical, and trial block production.

To produce South Africa Maxie brick at 290x90x140mm,the output is 24pcs per drop.

These tests confirmed the machine's forming accuracy, operational stability, and finished block quality. During factory commissioning, our engineers preset and stored the production parameters for each block type directly in the Siemens PLC control system and touch-screen interface.

When production begins at the customer's site, operators can simply select the corresponding product recipe from the stored database, significantly reducing setup time and ensuring consistent product quality. Only minor adjustments may be required according to local raw materials and production conditions.

Why Choose Hawen Machinery?

Hawen Machinery is committed to providing reliable and efficient block-making solutions. Every machine is thoroughly tested before shipment to ensure stable performance and high product quality.

Installation & Support

Upon the machine's arrival in South Africa, our experienced engineers will provide on-site installation, commissioning, and operator training to ensure a smooth and successful project start-up.
