Hollow Block Mould of MASA 9.2 Shipped to Client in UAE

In modern concrete block manufacturing, mould precision is a core determinant of product consistency and machine stability. This recent project in the United Arab Emirates reflects how direct technical engagement and precise engineering alignment can lead to a highly reliable production solution.

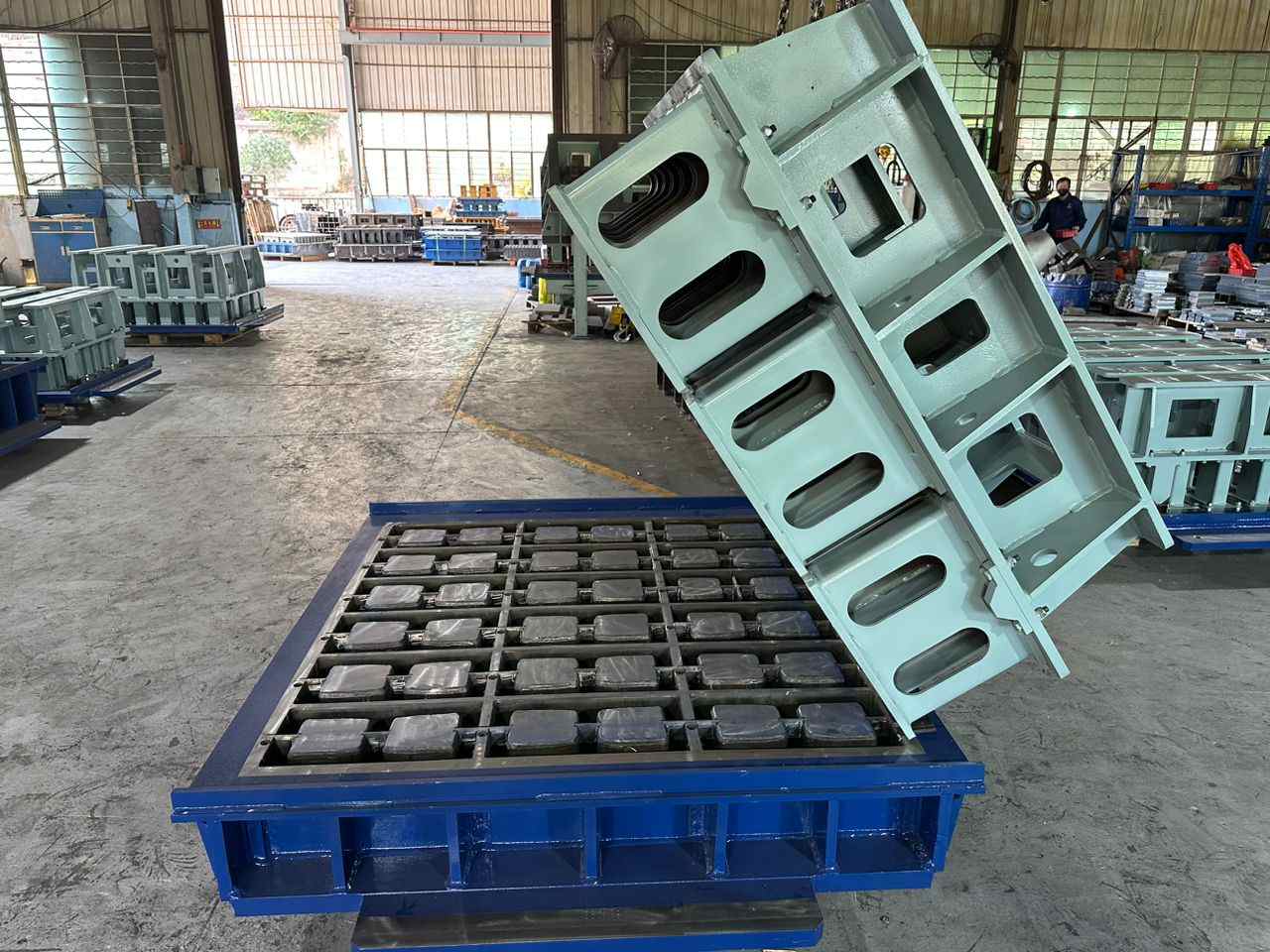

Hawen Machinery successfully completed and shipped one set of hollow block mould designed for a MASA 9.2 block machine following a technical visit to the client in the UAE.

Technical Visit to the UAE and Project Initiation

The cooperation was initiated through an on-site technical visit by Hawen Machinery's team to the client's production facility in the United Arab Emirates.

During the visit, both sides held detailed discussions regarding the client's existing MASA 9.2 block production line, including technical requirements, block specifications, and long-term production expectations. The purpose of this visit was to eliminate information gaps and ensure that the mould design would precisely match real operating conditions.

Rather than relying on remote communication, the engineering team evaluated the production environment directly. This allowed a more accurate understanding of vibration behavior, forming requirements, and wear conditions in daily operation.

Following this technical alignment, the client confirmed the order for one hollow block mould.

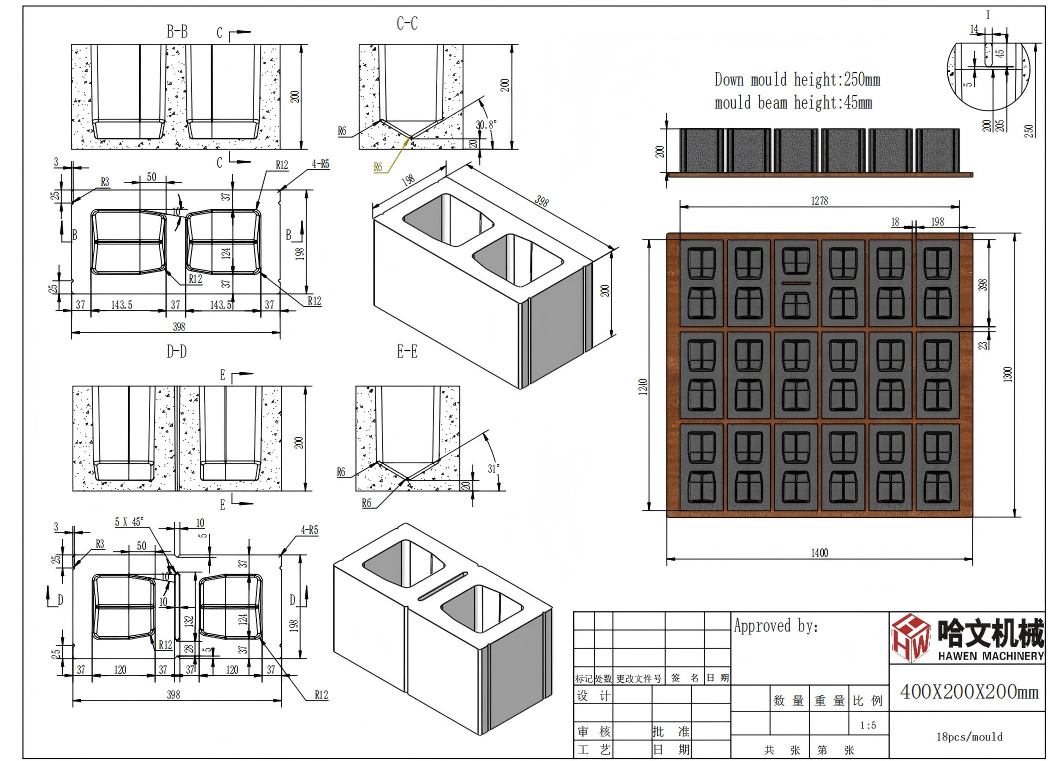

Engineered for MASA 9.2 (1400 × 1300 mm System)

The mould was designed specifically for the MASA 9.2 block machine system, with a pallet size of 1400 × 1300 mm.

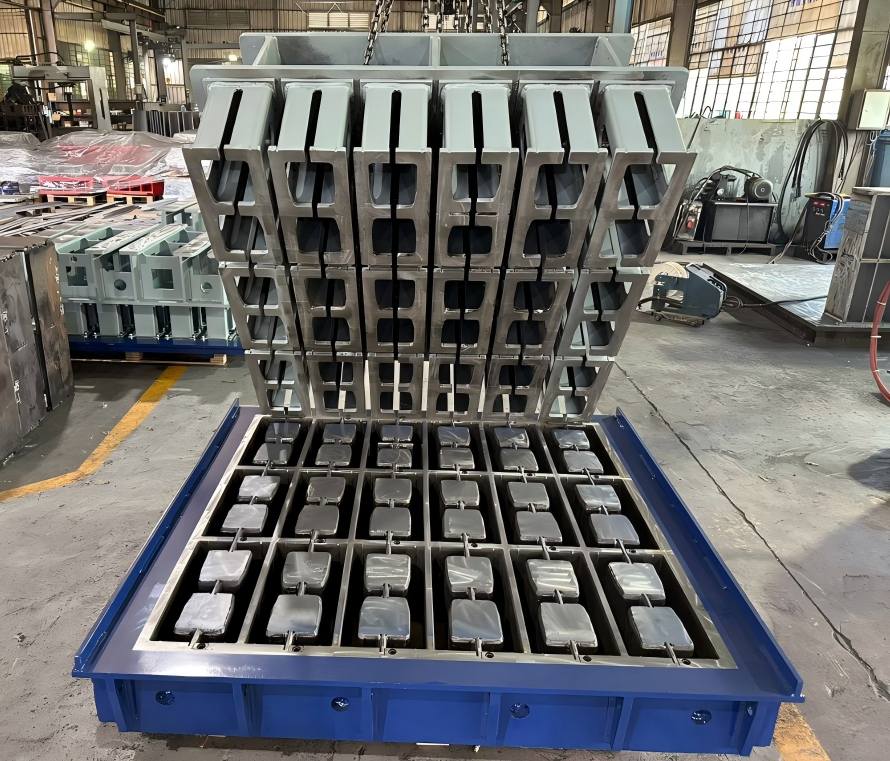

To ensure absolute compatibility, the mould will be fully assembled and tested in Hawen Machinery's workshop before shipment. This factory-based fitting process allows engineers to verify dimensional accuracy, forming stability, and mechanical coordination under real equipment conditions.

Compared with simple dimensional inspection, in-factory matching provides a more realistic validation of performance, significantly reducing installation risks and ensuring smoother commissioning at the client's plant.

Brand Compatibility and Engineering Precision

Hawen Machinery specializes in manufacturing moulds compatible with major international block machine brands, including Masa, Hess, Zenith, Poyatos, Besser, Tiger, Columbia, Quadar, Omag, etc.

By strictly following original equipment specifications, the mould ensures:

Accurate installation without modification
Stable forming performance under vibration cycles
Consistent block geometry and density
Reduced downtime during production transitions

This compatibility is particularly valuable for industrial users operating high-output or multi-brand production environments.

Heat Treatment and Hardness Control (HRC 62)

To enhance durability under continuous production conditions, the mould underwent full heat treatment processing.

This process improves the internal structure of the steel, significantly increasing wear resistance and extending service life under high-frequency vibration and compaction cycles.

Hardness testing confirmed the mould reached approximately HRC 62, achieving an optimal balance between surface hardness and structural toughness, which is critical for long-term industrial stability.

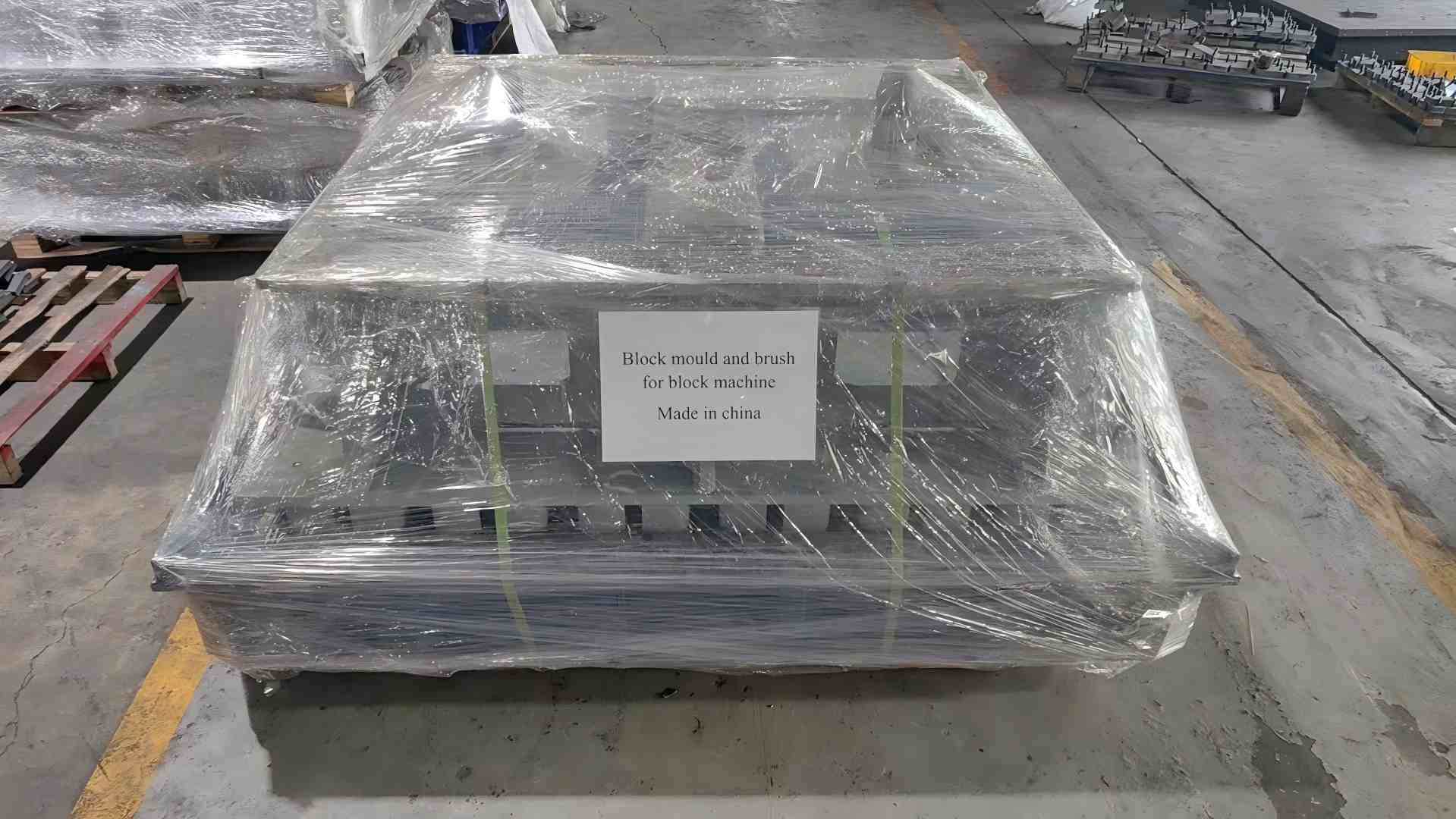

Strict Quality Inspection Before Shipment

Before delivery to the UAE, the mould passed a comprehensive inspection process, including:

Dimensional tolerance verification
Surface finish evaluation
Assembly and alignment testing
Hardness confirmation
Functional compatibility checks on reference equipment

Only after all technical requirements were fully satisfied was the mould approved for shipment.

Conclusion

This project demonstrates a key principle in modern block manufacturing: precision is not achieved through isolated manufacturing alone, but through direct technical engagement and real-world engineering validation.

The on-site visit to the UAE enabled Hawen Machinery to fully understand the client’s production requirements and deliver a MASA 9.2 hollow block mould solution that aligns with both machine specifications and operational reality.

Ultimately, this cooperation reinforces a simple but critical truth in industrial manufacturing:
true reliability is not defined by promises, but by precision that performs consistently in production.
